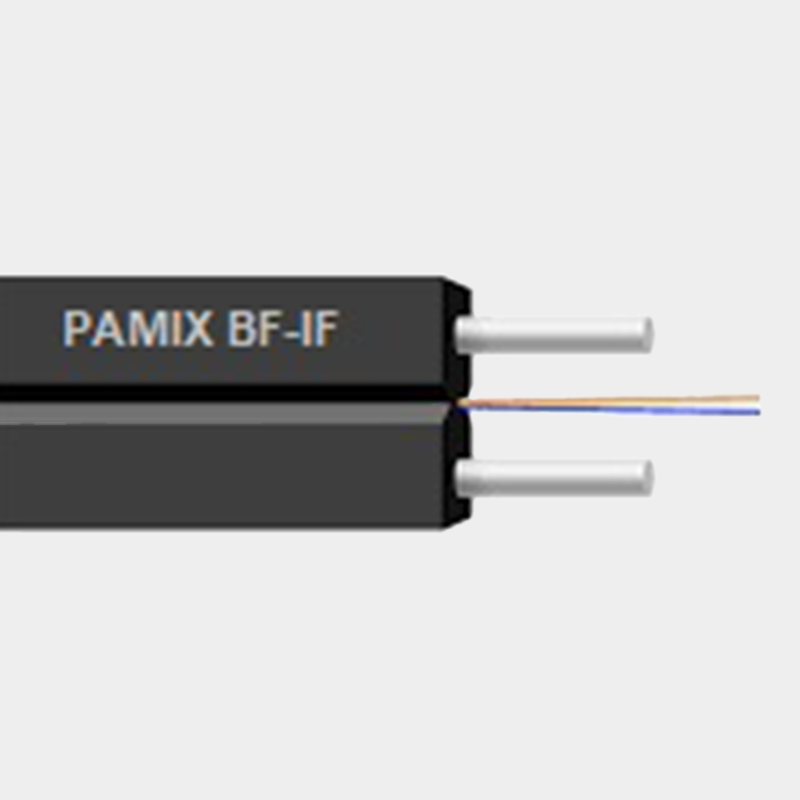

BF-IF01 Indoor Fiber Cable

30,00 лв.

+ Free Shipping

The PAMIX BF-IF01 is an ultra-lightweight, non-metallic indoor fiber cable specifically engineered for FTTH applications. Built with Fiber Reinforced Plastic (FRP) strength members and a safe LSZH outer sheath, it delivers a secure, flexible, and highly reliable solution for routing optical fiber inside premises.

Key Highlights:

  • Non-Metallic Design: Embedded with two 0.5mm FRP strength members, completely eliminating conductivity risks while maintaining structural support.

  • Indoor Optimized: Housed in a discreet Grey (RAL 7035) Low Smoke Zero Halogen (LSZH) sheath that strictly complies with IEC 60332-1-2 safety standards.

  • Compact & Lightweight: The novel groove design and ultra-thin 2.0 x 3.0mm flat profile make stripping and indoor installation fast and effortless.

  • High-Performance Fiber: Utilizes SM 9/125 (G.657 A2) bend-insensitive fiber, available in 1 to 4 core configurations.

Category:
Guaranteed Safe Checkout

The PAMIX BF-IF01 Indoor Fiber Cable is purposefully designed for FTTH (Fiber to the Home) indoor applications. Featuring a non-metallic construction with FRP (Fiber Reinforced Plastic) strength members, this cable is lightweight, safe, and highly reliable for horizontal routing inside premises.

General Construction & Design

  • Core Configuration: Features a novel groove design for quick and easy stripping, containing up to 4 colored fibers (Blue, Orange, White, Yellow) embedded directly into the outer sheath.

  • Strength Members (Non-Metallic): Engineered with two 0.5mm FRP (Fiber Reinforced Plastic) rope strength members, providing excellent structural integrity without the conductivity risks of metal.

  • Outer Sheath: Constructed with a flame-retardant LSZH (Low Smoke Zero Halogen) outer sheath (compliant with IEC 60332-1-2) in a discreet Grey (RAL 7035).

  • Dimensions: Features a highly compact, flat profile measuring just 2.0mm ± 0.1 x 3.0mm ± 0.1.

Performance Standards & Delivery

  • Durability: Delivers a tensile strength of 200N during installation and 100N during operation. Offers crush strength up to 100N/100mm (installation) and features a tight static bend radius of 20 mm.

  • Temperature Range: Designed to operate and install in temperatures ranging from -30⁰C to +60⁰C, with a storage tolerance of -30⁰C to +70⁰C.

  • Attenuation (SM 9/125 G.657 A2): Maximum 0.40 dB/km at 1310 nm and Maximum 0.25 dB/km at 1550 nm.

  • Delivery Packaging: Supplied on a 2000-meter standard reel on a poly-wood drum (50 cm drum flange diameter). This ultra-lightweight cable weighs just 8.5 kg/km, with a gross drum weight of 20.0 kg.

  • Warranty: Backed by a 25-year performance warranty (refer to PAMIX Worldwide warranty terms).

Ordering Information

  • Article Number 1012001: PAMIX BF-IF01 Indoor Fiber cable 1 core, SM G.657 A2, FRP Strength member

  • Article Number 1012002: PAMIX BF-IF01 Indoor Fiber cable 2 cores, SM G.657 A2, FRP Strength member

  • Article Number 1012003: PAMIX BF-IF01 Indoor Fiber cable 3 cores, SM G.657 A2, FRP Strength member

  • Article Number 1012004: PAMIX BF-IF01 Indoor Fiber cable 4 cores, SM G.657 A2, FRP Strength member
