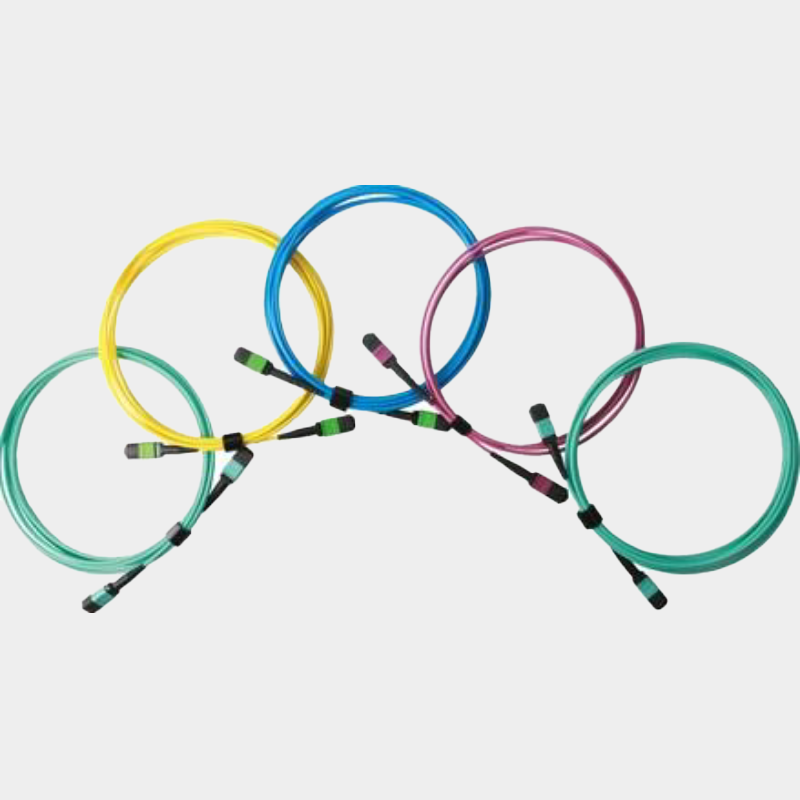

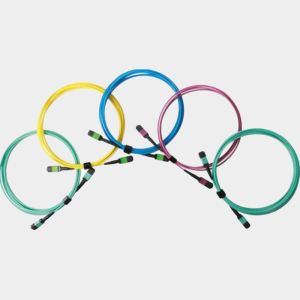

PAMIX MPO Fiber Cords are shipped pre-terminated and tested by the factory to ensure reliable, plug-and-play performance. Each cord is subjected to strict QC tests to meet high customer expectations. Designed for high-speed network environments, these MPO cord cables are suitable for 10G, 40G, & 100G transmission. They are ideal for deployments requiring dense cabling, such as Data Center interconnects, Premises Backbones, and Telecommunication Networks.
Key Features & Construction
-
Cords feature 12 fibers by default, with 8, 24, & 48 fiber configurations available on request.
-

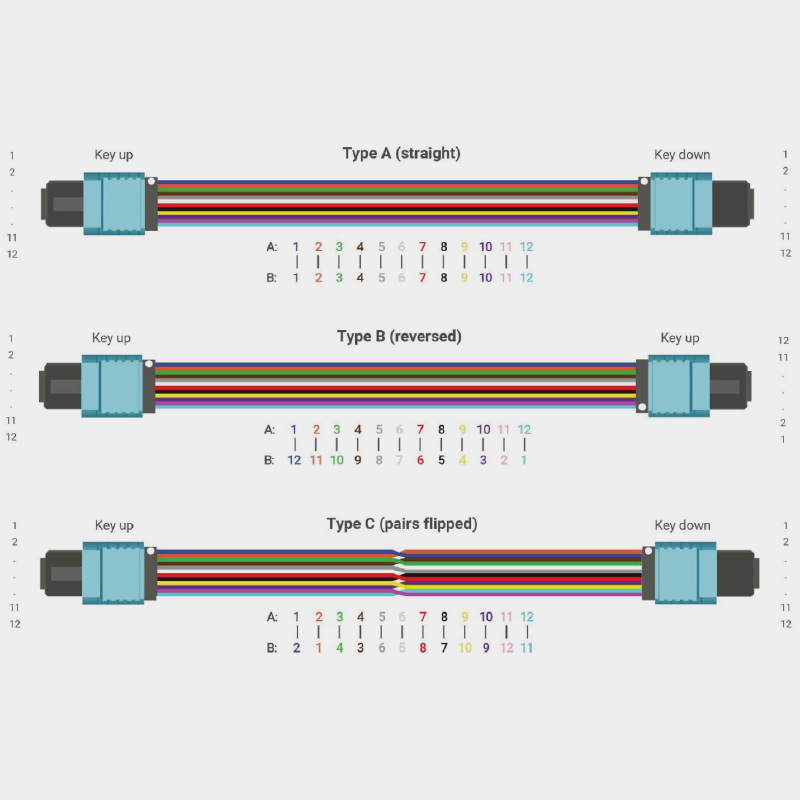

Polarities available include Type A (straight), Type B (reversed), & Type C (pairs flipped).
-
MPO Connectors are shipped Female-Female as standard, with Male-Male & Female-Male ends available on request.
-
Available in Single Mode (G652D, G657A1) and Multi-Mode (OM3, OM4) fiber types.
-
Protected by an FRNC/LSOH cable sheath manufactured according to IEC 60754-1L-2, IEC 60332-1-2, IEC 60332-3-22 & IEC 61034-1/-2.
-
Available in either ribbon or round cable configurations.
-
Fully compliant with IEC-61754-7 and EIA/TIA-604-5 standards.
Technical Information
-
Connector Durability: Rated for 500 mating times.
-
Operating Temperature: -20 to +60 °C.
-
Storage Temperature: -40 to +60 °C.
-
Single Mode Ferrule (APC): Features a typical Insertion Loss of 0.30 dB (Max 0.7 dB) and a Return Loss of ≥60 dB.
-
Single Mode Ferrule (UPC): Features a typical Insertion Loss of 0.30 dB (Max 0.7 dB) and a Return Loss of ≥50 dB.
-
Multi-Mode Ferrule (UPC): Features a typical Insertion Loss of 0.30 dB (Max 0.7 dB) and a Return Loss of ≥20 dB.
-
Standard Lengths & Identification: Cords range from 1 to 30 meters and are color-coded by jacket (Yellow for SM, Aqua for OM3, Violet for OM4).
