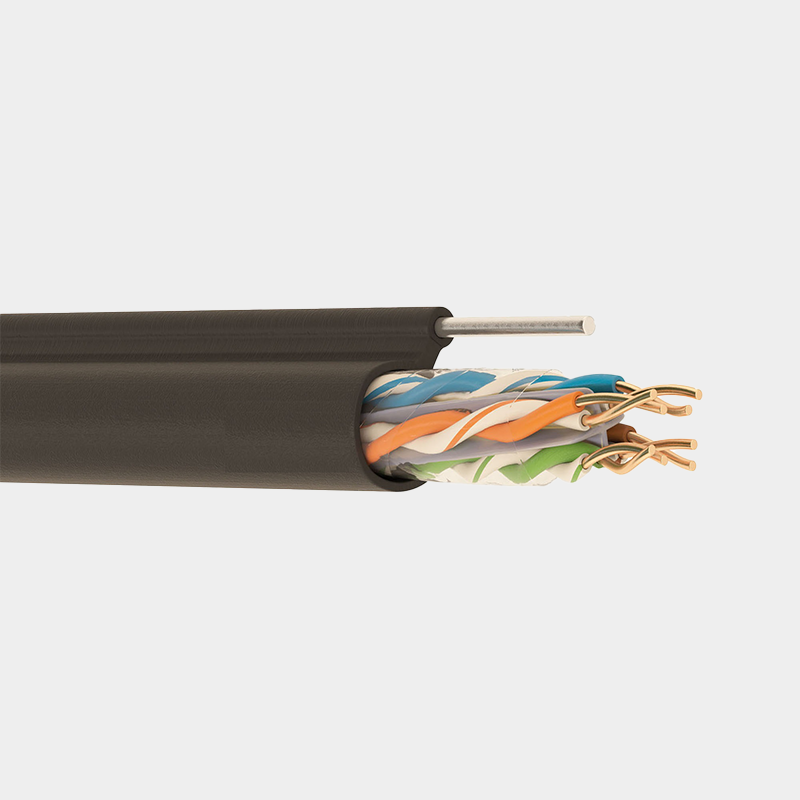

PAMIX 280 Aerial Cat 6 UUTP

The PAMIX 280 CAT 6 Aerial Data Cable (U/UTP) is designed for reliable outdoor aerial installations, perfectly suited for connecting IP-based devices across open spaces. Engineered with a dedicated steel messenger wire, it easily bears its own weight to prevent stretching and damage when laid directly in the air. Fully waterproof and UV-proof, this unshielded cable is widely utilized in CCTV applications and campus environments, delivering seamless transmission of voice, video, and data for all ICT network applications up to 250 MHz.

General Construction & Design This Cat.6 U/UTP cable is fully compatible with all current connecting hardware and is designed to support high-power IEEE 802.3bt Type 4 (100 Watt) Power over Ethernet (PoE). It features a robust LDPE outer jacket and high-density polyethylene (HDPE) insulation, which carefully protect the solid bare copper conductors from harsh environmental elements.

Technical Specifications

• Conductors: SOLID-Bare Copper, 24 AWG (0.53mm ±0.005), Total 8 Conductors (4 Pairs)

• Insulation: HDPE (0.93 ±0.08 mm diameter)

• Outer Jacket: RoHS-compliant LDPE, Black (0.55mm ±0.05 average thickness)

• Aerial Support: Integrated 1.2mm Steel Wire messenger

• Dimensions: Cable Diameter 6.1mm / 2.6mm ±0.5

• Accessibility: Includes a ripcord for easy stripping

• Color Code: Compliant with TIA/EIA 568-B

Electrical Characteristics (at 20°C)

• Impedance: 100 ±15 Ω @ 1.0 – 250.0 MHz

• Delay Skew: ≤ 45 ns/100m @ 1.0 – 250.0 MHz

• DC Resistance: 9.5 Ω/100m

• DC Conductor Resistance Unbalance: 5.0% maximum

Industry Standards

• Cabling Standards: ISO/IEC 11801, IEC 61156-5

• European Standards: EN 50173-1:2018, EN 50173-2:2018, EN 50288-6-1

• Telecommunications: TIA-568-C.2

• PoE Support: IEEE 802.3bt Type 4 (100W)

Ordering Information

• Article Number 1001094: PAMIX Aerial Data Cable 280 Cat 6 / Class E U/UTP 4P AWG24 LDPE Outdoor, Black, 305m packing

• Article Number 1001095: PAMIX Aerial Data Cable 280 Cat 6 / Class E U/UTP 4P AWG24 LDPE Outdoor, Black, 500m packing

• (Note: Cable sheath printing is marked as PAMIX 280 CAT 6 / Class E Aerial U/UTP 4P AWG24 LDPE Outdoor)
