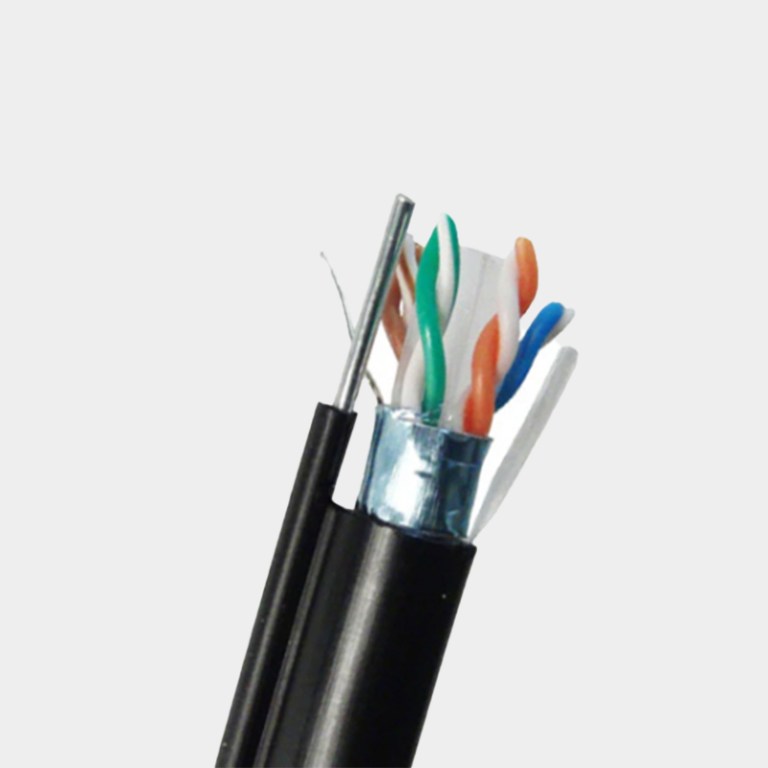

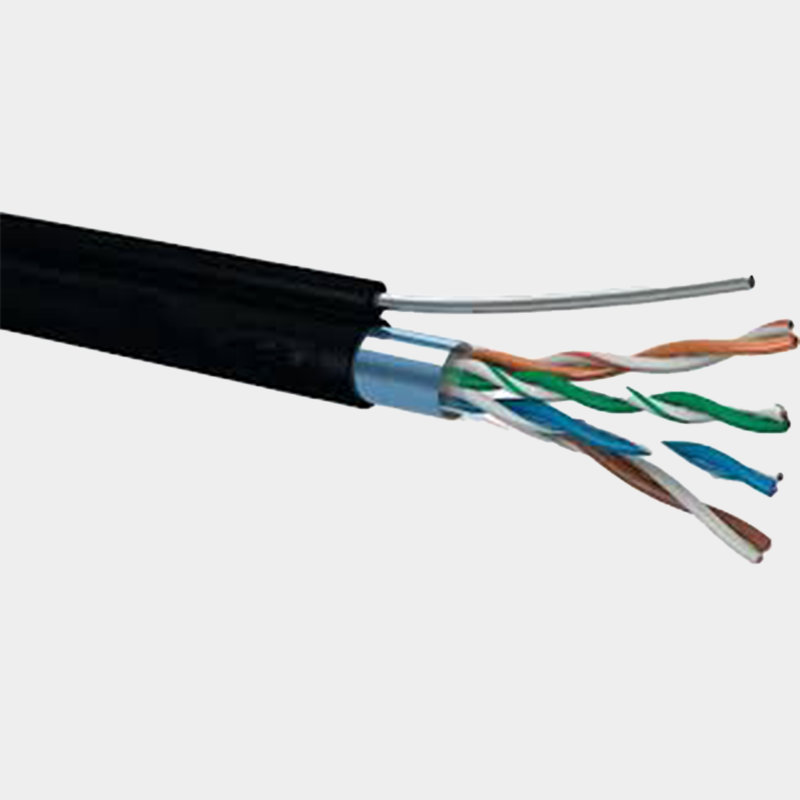

The PAMIX 290 CAT 6 Aerial Data Cable is specifically engineered for outdoor aerial installations to connect IP-based devices across open spaces. Built with a robust integrated steel messenger wire that bears the cable’s weight, it prevents stretching and mechanical damage during aerial suspension. Featuring exceptional waterproof and UV-proof protection, this cable is widely deployed in CCTV applications and campus environments, delivering flawless transmission of voice, video, and data for all ICT network applications up to 250 MHz frequency.
General Construction & Design This Cat.6 F/UTP cable is fully compatible with all current connecting hardware and supports advanced IEEE 802.3bt Type 4 (100 Watt) Power over Ethernet (PoE). It features an LDPE outer jacket and high-density polyethylene (HDPE) insulation, protecting solid bare copper conductors. The cable is shielded with Maylar and Al/Maylar screening to prevent electromagnetic interference.
Technical Specifications
-
Conductors: Solid Bare Copper, 24 AWG (0.52mm ±0.005), Total 8 Conductors (4 Pairs)
-
Insulation: HDPE (1.05 ±0.1 mm diameter)
-
Screening: Maylar, Al/Maylar with integrated Drain Wire
-
Outer Jacket: RoHS-compliant LDPE, Black (0.55mm ±0.1 average thickness)
-
Aerial Support: Integrated 1.2mm Steel Wire messenger
-
Dimensions: Cable Diameter 6.9mm / 2.6mm ±1.0
-
Accessibility: Includes a ripcord for easy stripping
-
Color Code: Compliant with TIA/EIA 568-B
Electrical Characteristics (at 20°C)
-
Impedance: 100 ±15 Ω @ 1.0 – 250.0 MHz
-
Delay Skew: ≤ 45 ns/100m @ 1.0 – 250.0 MHz
-
DC Resistance: 9.5 Ω/100m
-
DC Conductor Resistance Unbalance: 5.0% maximum
-
Capacitance: 330 pf/100m maximum unbalance to ground
Industry Standards
-
Cabling Standards: ISO/IEC 11801, IEC 61156-5
-
European Standards: EN 50173-1:2018, EN 50173-2:2018, EN 50288-6-1
-
Telecommunications: TIA-568-C.2
-
PoE Support: IEEE 802.3bt Type 4 (100W)
Ordering Information
-
Article Number 1001060: PAMIX Aerial Data Cable 290 Cat 6 / Class E F/UTP 4P AWG23 LDPE Outdoor, Black, 305m packing
-
Article Number 1001061: PAMIX Aerial Data Cable 290 Cat 6 / Class E F/UTP 4P AWG23 LDPE Outdoor, Black, 500m packing
-
(Note: Cable sheath printing is marked as PAMIX 290 CAT 6 / Class E Aerial F/UTP 4P AWG24 LDPE Outdoor)
