PAMIX 520 Cat 6A UFTP

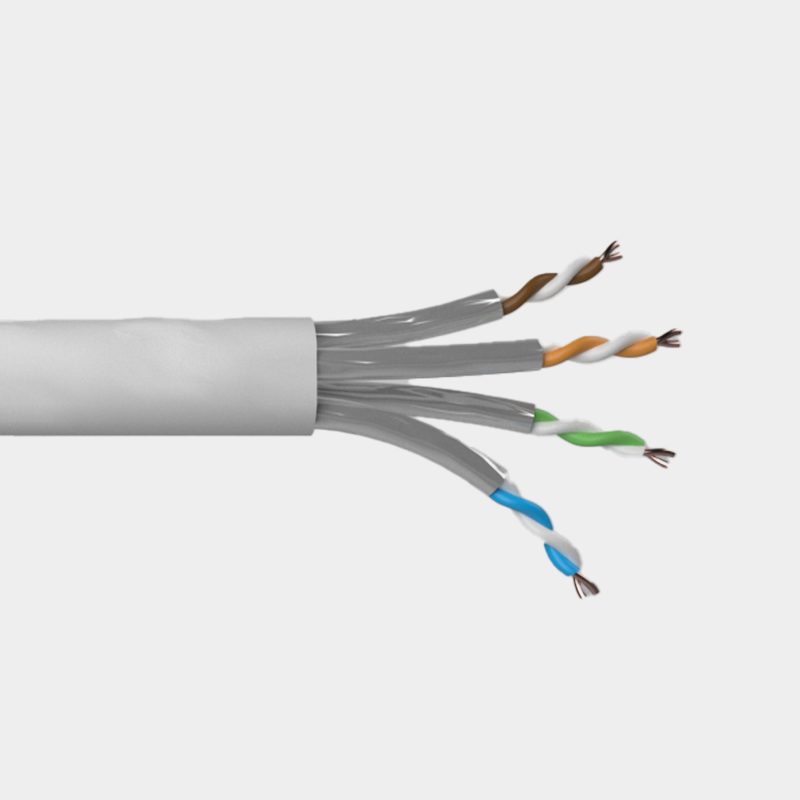

The PAMIX 520 CAT 6A Data Cable is a high-performance shielded solution engineered specifically for horizontal cabling and building backbones. Designed for the flawless transmission of digital and analog voice, video, and data signals, this cable effortlessly supports all ICT network applications up to a 500 MHz frequency. It is also fully equipped to handle demanding Power over Ethernet (PoE/PoE+) applications.

General Construction & Design This Cat.6A U/FTP cable strictly complies with ISO/IEC 11801, IEC 61156-5, EN 50173-1, and EN 50288-10-1 standards. It delivers an excellent shielding effect by utilizing individually screened pairs (Al/Mylar) alongside a dedicated drain wire to effectively block electromagnetic interference. For maximum indoor safety, it is housed in a Low Smoke Zero Halogen and Flame Retardant Non-Corrosive (FRNC-LSZH) outer jacket. It is completely compatible with all current connecting hardware in accordance with EN 50173 and ISO/IEC 11801.

Technical Specifications

• Conductors: SOLID-Bare Copper, 23 AWG (0.56mm ±0.005), Total 8 Conductors (4 Pairs)

• Insulation: Skin-foam-skin PE

• Screening: Al/Mylar (individually screened pairs) with a 0.45mm Drain Wire

• Outer Jacket: RoHS-compliant FRNC-LSZH, 0.55mm ±0.05 average thickness

• Dimensions: Cable Diameter 7.3mm ±0.5

• Accessibility: Includes a ripcord for easy stripping

• Color Code: Compliant with TIA/EIA 568-B

Electrical Characteristics (at 20°C)

• Impedance:

  • 100 ±15 Ω @ 1.0 – 250.0 MHz

  • 100 ±22 Ω @ 250.0 – 500.0 MHz

• Delay Skew: ≤ 45 ns/100m @ 1.0 – 500.00 MHz

• Propagation Velocity (NVP): 78%

• DC Resistance: 70 Ω/km

• DC Conductor Resistance Unbalance: 5.0% maximum

• Capacitance: 330 pf/100m maximum unbalance to ground

Industry Standards

• Cabling Standards: ISO/IEC 11801-1/2:2017 (Ed. 1.0), IEC 61156-5:2012 (Ed. 2.1)

• European Standards: EN 50173-1/2:2018, EN 50288-4-1:2013

• Telecommunications & Networking: TIA-568-2-D:2018

• Safety (Flammability, Halogen Acidity & Smoke): IEC 60332-1-1/2:2015, IEC 60754-2:2019, IEC 61034-1:2019, IEC 61034-2:2013

Ordering Information

• Article Number 1001151: Data Cable 520 Cat 6A Class EA U/FTP FRNC/LSZH 4P, Blue

• Article Number 1001152: Data Cable 520 Cat 6A Class EA U/FTP FRNC/LSZH 4P, Red

• Article Number 1001153: Data Cable 520 Cat 6A Class EA U/FTP FRNC/LSZH 4P, Grey

• Article Number 1001154: Data Cable 520 Cat 6A Class EA U/FTP FRNC/LSZH 4P, Green

• Article Number 1001155: Data Cable 520 Cat 6A Class EA U/FTP FRNC/LSZH 4P, Yellow

• Article Number 1001156: Data Cable 520 Cat 6A Class EA U/FTP FRNC/LSZH 4P, Orange

• Article Number 1001157: Data Cable 520 Cat 6A Class EA U/FTP FRNC/LSZH 4P, Purple

• (Note: Cable sheath printing is marked as PAMIX 520 CAT6A / Class EA U/FTP 4P AWG23 FRNC/LSZH).
