PAMIX 600 CAT7 FFTP

The PAMIX 600 CAT 7 Data Cable is a premium, high-bandwidth solution engineered specifically for horizontal cabling and building backbones. Designed for the flawless transmission of digital and analog voice, video, and data signals, this cable easily supports all ICT network applications up to a Class F (600 MHz) frequency. It is also fully equipped to handle demanding Power over Ethernet (PoE/PoE+) applications.

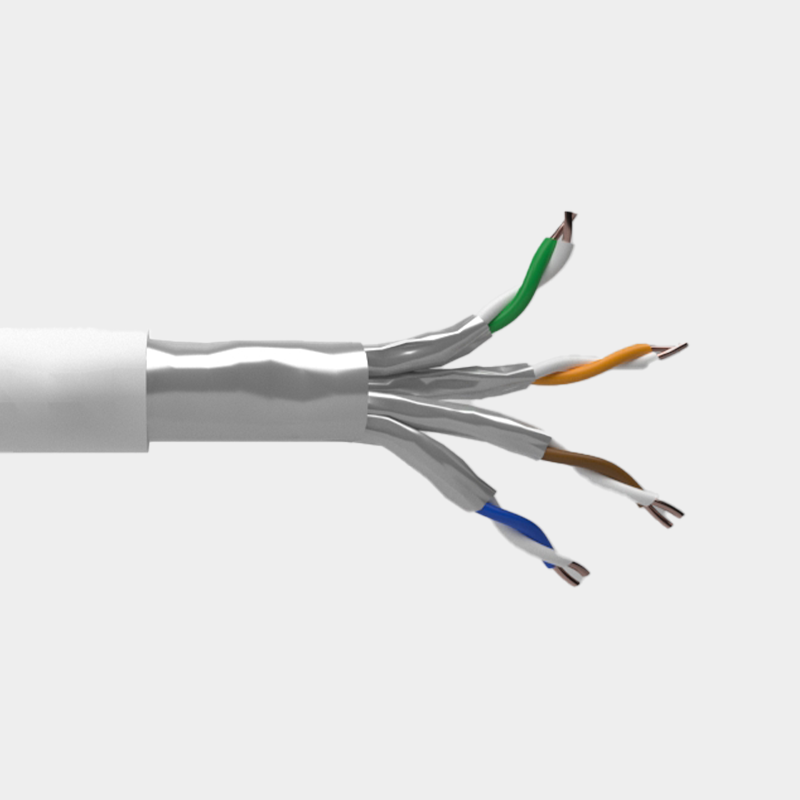

General Construction & Design This Cat.7 F/FTP cable exceeds the strict requirements of ISO/IEC 11801, IEC 61156-5, EN 50173-1, and EN 50288-4-1 standards. It delivers an outstanding shielding effect by utilizing individually screened pairs (Al/Mylar) alongside an overall foil screening (Al/Mylar) to completely eliminate electromagnetic interference. For maximum indoor safety, it is housed in a Low Smoke Zero Halogen and Flame Retardant Non-Corrosive (FRNC-LSZH) outer jacket. It is completely compatible with all current connecting hardware in accordance with EN 50173 and ISO/IEC 11801.

Technical Specifications

• Conductors: SOLID-Bare Copper, 23 AWG (0.58mm ±0.005), Total 8 Conductors (4 Pairs)

• Insulation: Skin-foam-skin PE

• Screening: Inner Al/Mylar (individually screened pairs) and Outer AL/Mylar foil

• Outer Jacket: RoHS-compliant FRNC-LSZH, 0.55mm ±0.05 average thickness

• Dimensions: Cable Diameter 7.5mm ±0.5

• Accessibility: Includes a ripcord for easy stripping

• Color Code: Compliant with TIA/EIA 568-B

Electrical Characteristics (at 20°C)

• Impedance:

  • 100 ±15 Ω @ 1.0 – 100.0 MHz

  • 100 ±18 Ω @ 100.0 – 250.0 MHz

  • 100 ±25 Ω @ 250.0 – 600.0 MHz

• Delay Skew: ≤ 45 ns/100m

• DC Resistance: 64 Ω/km

• DC Conductor Resistance Unbalance: 5.0% maximum

• Capacitance: 330 pf/100m maximum unbalance to ground

Industry Standards

• Cabling Standards: ISO/IEC 11801-1/2:2017 (Ed. 1.0), IEC 61156-5:2020 (Ed. 3.0)

• European Standards: EN 50173-1/2:2018, EN 50288-4-1:2013

• Safety (Flammability, Halogen Acidity & Smoke): IEC 60332-1-1/2:2015, IEC 60754-2:2019, IEC 61034-1/2:2019

Ordering Information

• Article Number 1001231: Data Cable 600 Cat 7 / Class F F/FTP FRNC/LSZH 4P, Blue

• Article Number 1001232: Data Cable 600 Cat 7 / Class F F/FTP FRNC/LSZH 4P, Red

• Article Number 1001233: Data Cable 600 Cat 7 / Class F F/FTP FRNC/LSZH 4P, Grey

• Article Number 1001234: Data Cable 600 Cat 7 / Class F F/FTP FRNC/LSZH 4P, Green

• Article Number 1001235: Data Cable 600 Cat 7 / Class F F/FTP FRNC/LSZH 4P, Yellow

• Article Number 1001236: Data Cable 600 Cat 7 / Class F F/FTP FRNC/LSZH 4P, Orange

• Article Number 1001237: Data Cable 600 Cat 7 / Class F F/FTP FRNC/LSZH 4P, Black

• (Note: Cable sheath printing is marked as PAMIX 600 CAT7 / Class F F/FTP 4P AWG23 FRNC/LSZH).
