The PAMIX 670 CAT 7 Outdoor Data Cable is a premium solution engineered specifically for high-performance outdoor applications. Designed for the flawless transmission of digital and analog voice, video, and data signals, this Class F cable supports all ICT network applications up to a sweeping 600 MHz frequency. With full support for Power over Ethernet (PoE/PoE+), it easily exceeds the requirements of ISO/IEC 11801 and EN 50173-1 standards while remaining fully compatible with all current connecting hardware.

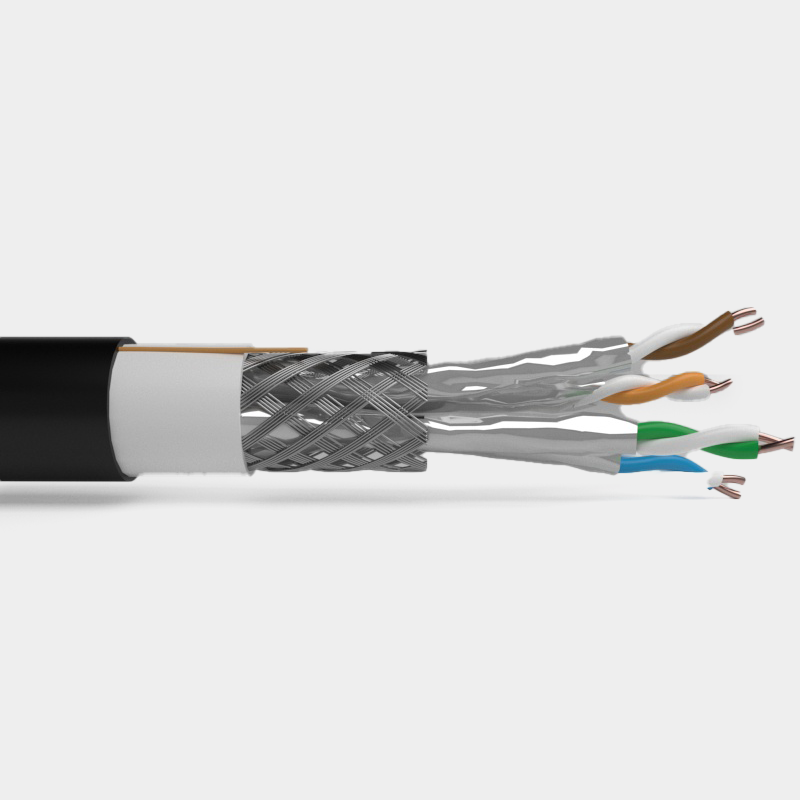

General Construction & Design This rugged S/FTP (Shielded/Foiled Twisted Pair) cable boasts an excellent shielding effect. It features individually screened pairs (Al/Mylar) combined with an overall tinned copper braid screening (35% coverage) to completely neutralize electromagnetic interference. The conductors are insulated with Skin-foam-skin PE and housed inside a highly durable, RoHS-compliant double jacket with an LDPE outer sheath, making it incredibly resilient against harsh outdoor elements.
Technical Specifications
-
Conductors: SOLID-Bare Copper, 23 AWG (0.58mm ±0.005), Total 8 Conductors (4 Pairs)
-
Insulation: Skin-foam-skin PE
-
Inner Screening: Al/Mylar (individually screened pairs)
-
Outer Screening: Tinned Copper Braid (35% coverage)
-
Outer Jacket: RoHS-compliant LDPE, Black (0.6mm ±0.05 thickness)
-
Dimensions: Cable Diameter 8.8mm ±0.5
-
Accessibility: Includes a ripcord for easy stripping
-
Color Code: Compliant with TIA/EIA 568-B
Electrical Characteristics (at 20°C)
-
Impedance:
-
100 ±15 Ω @ 1.0 – 100.0 MHz
-
100 ±18 Ω @ 100.0 – 250.0 MHz
-
100 ±25 Ω @ 250.0 – 600.0 MHz
-
-
Delay Skew: ≤ 25 ns/100m
-
Propagation Velocity: 78%
-
DC Resistance: 64 Ω/km
-
DC Conductor Resistance Unbalance: 5.0% maximum
-
Capacitance: 330 pf/100m maximum unbalance to ground
Industry Standards
-
Cabling Standards: ISO/IEC 11801-1:2017 (Ed. 1.0), ISO/IEC 11801-2:2017 (Ed. 1.0), IEC 61156-5:2020 (Ed. 3.0), EN 50173-1:2018, EN 50173-2:2018, EN 50288-4-1:2013
-
Safety & Environmental: IEC 60332-1-1:2015, IEC 60332-1-2:2015 (Flammability); IEC 60754-2:2011 (Halogen acidity and smoke performance)
Ordering Information
-
Article Number 1001221: PAMIX Data Cable 670 Cat 7 / Class F S/FTP Outdoor, Black
-
(Note: Cable sheath printing is marked as PAMIX Outdoor 670 CAT7 / Class F S/FTP 4P AWG23 PE)
