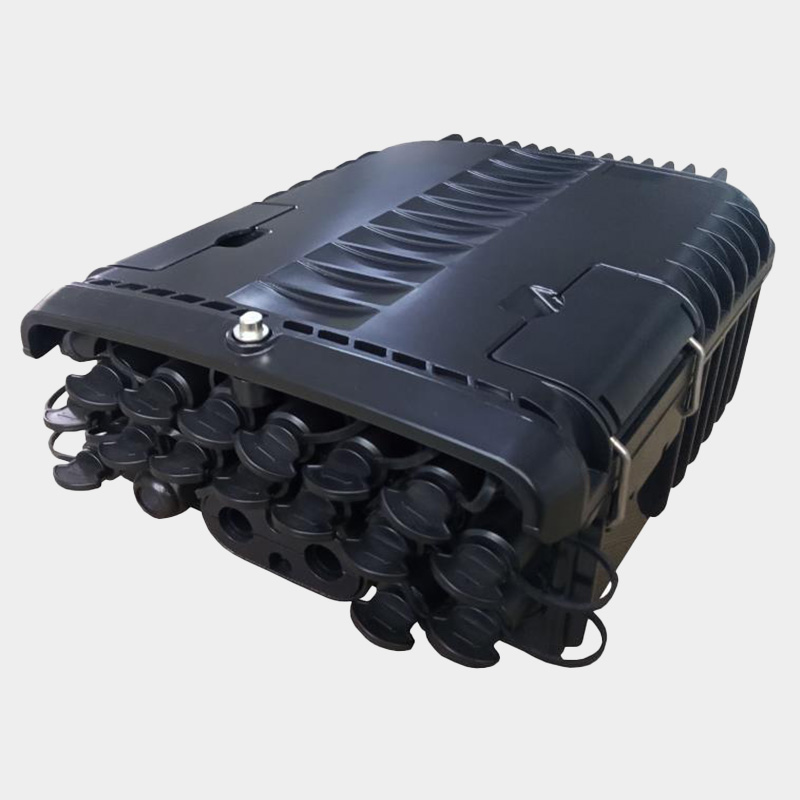

PAMIX fiber optic distribution boxes are widely used in FTTH applications as a termination point for the drop cables. They are suitable for fiber splicing, splitting, and distribution, and generally can be installed on walls, poles, or aerial (steel rope). They are suitable for tube type PLC splitters.
General Features & Applications
-
Applications: FTTH access networks, telecommunication networks, CATV networks, and data communication networks.
-
Design & Protection: Water, dust & UV proof with IP66 protection.
-

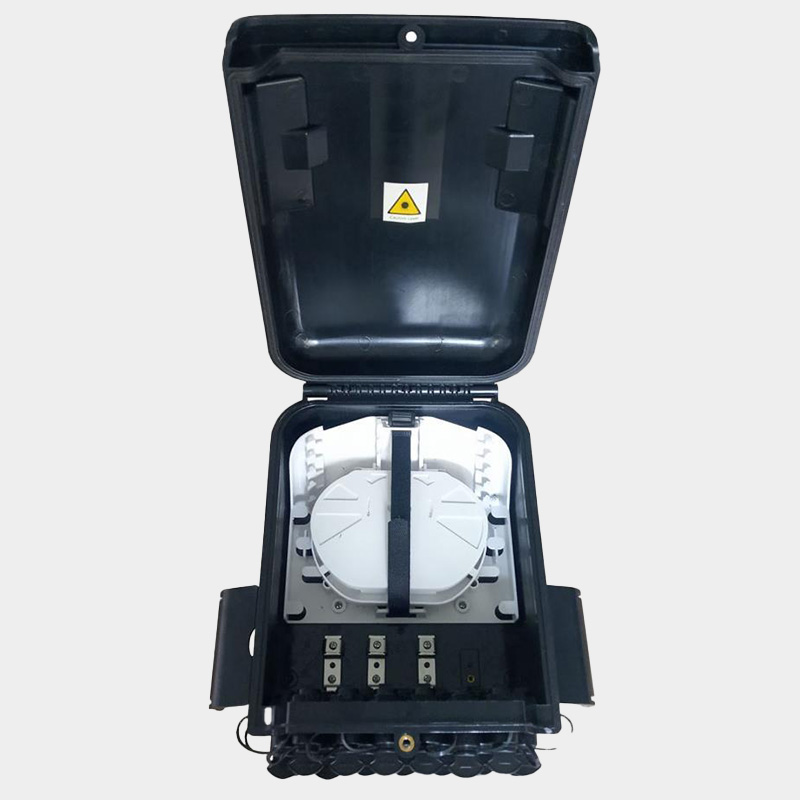

Structure: Tube PLC type with easy internal cable management.
-
Material & Color: PC+ABS material available in Black or White.
-
Mounting: Wall, Pole, and aerial mounting.
Technical Specifications
-
Size: $290 \times 210 \times 111\text{ (mm)}$
-
Material: PC+ABS
-
Color: Black
-
Splice Capacity: 16 Cores minimum
-
Adapter Type: SC
-
Adaptor Capacity: 16
-
Uncut Cable Input: 1
-
Out coming Cable Port: 16 Cable outputs
-
Installation Method: Wall, Pole Mounted or Aerial
-
Operating Temperature: $-40\ ^\circ\text{C}$ to $85^\circ\text{C}$
Package Includes
-
Key, Splice accessories, cable ties, Wall, Pole and Aerial mounting kits, PLC splitter tube type based on some models.
Ordering Information
-
Article Number 1016835: Fiber distribution box, 16 cable outputs, one 1:16 PLC Tube Splitter
-
Article Number 1016836: Fiber distribution box, 16 cable outputs, one 1:8 PLC Tube Splitter
-
Article Number 1016837: Fiber distribution box, 16 cable outputs, empty (no splitter)
-
(Note: Customized distribution boxes can be produced based on customer request).
