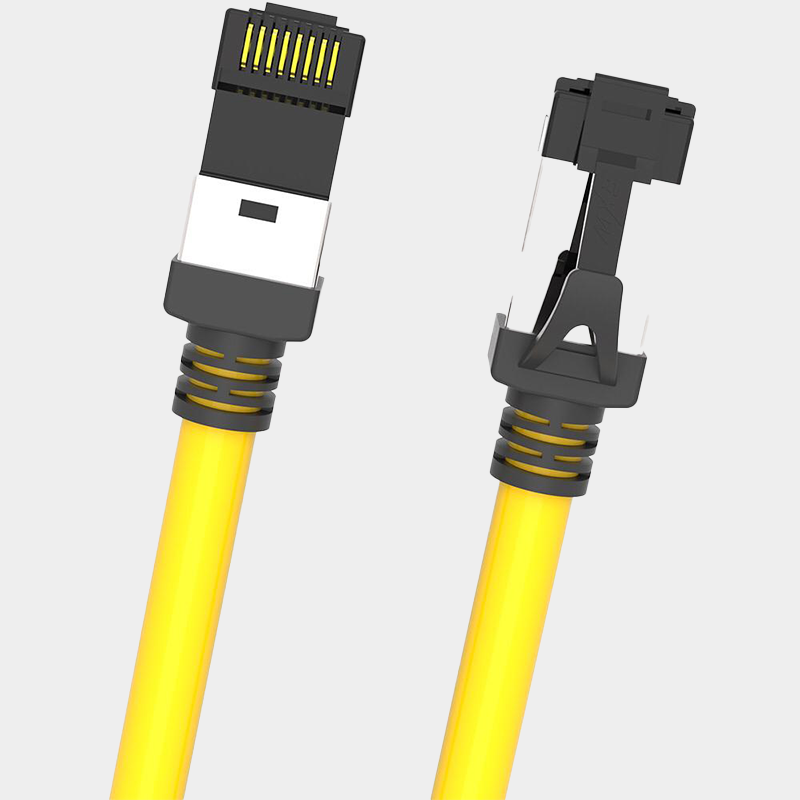

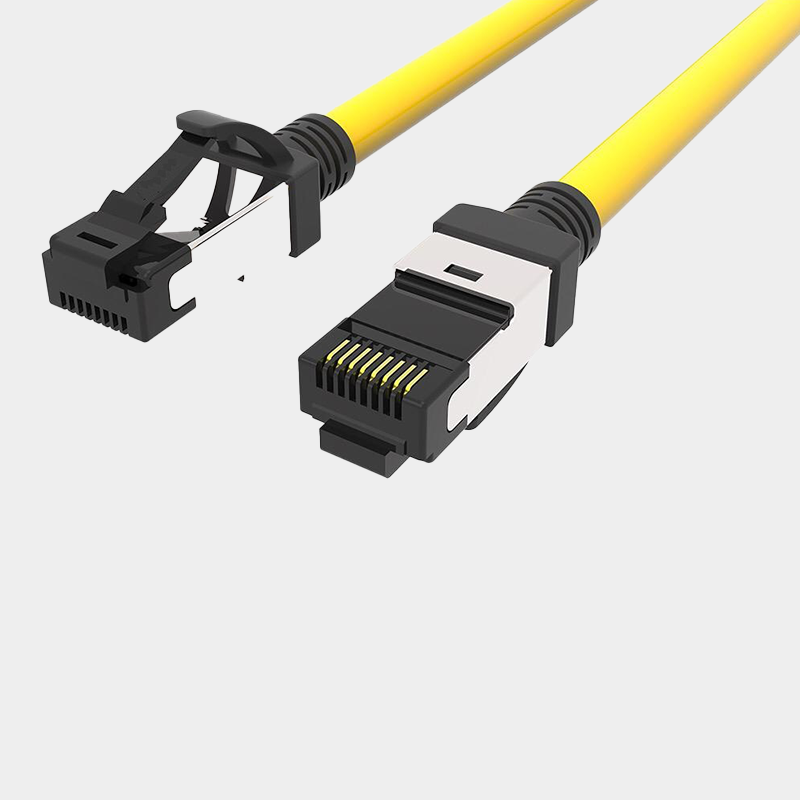

The PAMIX Elite Patch Cord CAT 8 S/FTP 4P, LSZH exhibits excellent NEXT, FEXT Crosstalk, Insertion and return loss performance according to ISO/IEC 11801 CAT 8.1 requirements. It features a male connector manufactured according to 60603-7-81 2000 MHZ transmission. The cable’s overall braid shielding, individually foiled twisted pairs, and high-quality Cat 8.1 RJ45 screened male connector at both cord sides exceed standard requirements up to 2000MHz. This Cat 8.1 patch cord supports 40 Gigabit transmission and is backward compatible with Cat 6A, Cat 6, Cat 5/5e, and Cat 3 networks. The Cat 8.1 SFTP patch cord is manufactured for maximum protection against electromagnetic interference (EMI).

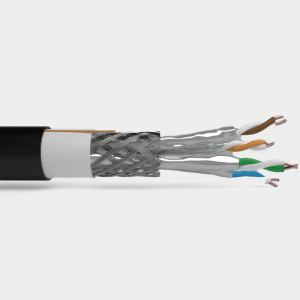

General Construction & Design Designed for indoor applications, this patch cable utilizes overall tinned copper braid shielding and individually foiled twisted pairs. The Cat 8.1 SFTP patch cable is terminated in 8-position 8-conductor (8P8C) modular connectors. The cable is housed in an FRNC/LSZH external sheath.
Technical Specifications
-
Conductors: Cat 8.1 Cable with AWG26 stranded copper for flex.
-
Wiring Scheme: T568A/B-T568A/B wiring scheme.
-
Termination: IDC copper core termination.
-
Compatibility: Suitable for RJ45 Female Jacks & Modules with 40G performance and backward.
-
Tested Channel Length: Tested channel length 30 meters at 40G & 50 meters at 25G.
Electrical & Environmental Characteristics
-
Dielectric Strength: 1 kV DC Dielectric Strength.
-
Current Rating: 1.5A Current Rating.
-
Insulation Resistance: 5000 M Ohm*km Insulation Resistance.
-
Operating Temperature: -20°C to +60°C.
Industry Standards
-
Category/Class: Cat 8.1, Class I.
-
Standards: IEC 60603-7-81 cat 8 connector 2GHz; ISO/IEC 11801-1:2017(Ed.1.0) / ISO/IEC 11801-2:2017(Ed.1.0) Cat 8 standards; EN 50173-1:2018/ EN 50173-2:2018 /TIA-568.2-D:2018 Cat 8 standards.
-
Flame Propagation: IEC 60332-1/-2, EN 60332-1-2, VDE 0482-332-1-2.
-
Smoke Density: IEC 61034-1/-2, EN 61034-1/-2, VDE 0482-1034-1/-2 – applies to FRNC/LSOH.
-
Zero Halogen/Corrosive Gases: IEC 60754-1/-2, EN 60754-1/-2, VDE 0482-754-1/-2.
-
EMC: Shielded.
Ordering Information
-
Available Lengths: Ranging from 0.5 m up to 20.0 m, with other lengths on request.
-
Available Colors: Gray, Green, Yellow, Red, Blue, Black, White, Orange, and Oval.
-
Data Link Limitations: The data link channel shouldn’t be more than 30 meters at 40G data transmission, and shouldn’t be more than 50 meters at 25G data transmission.
