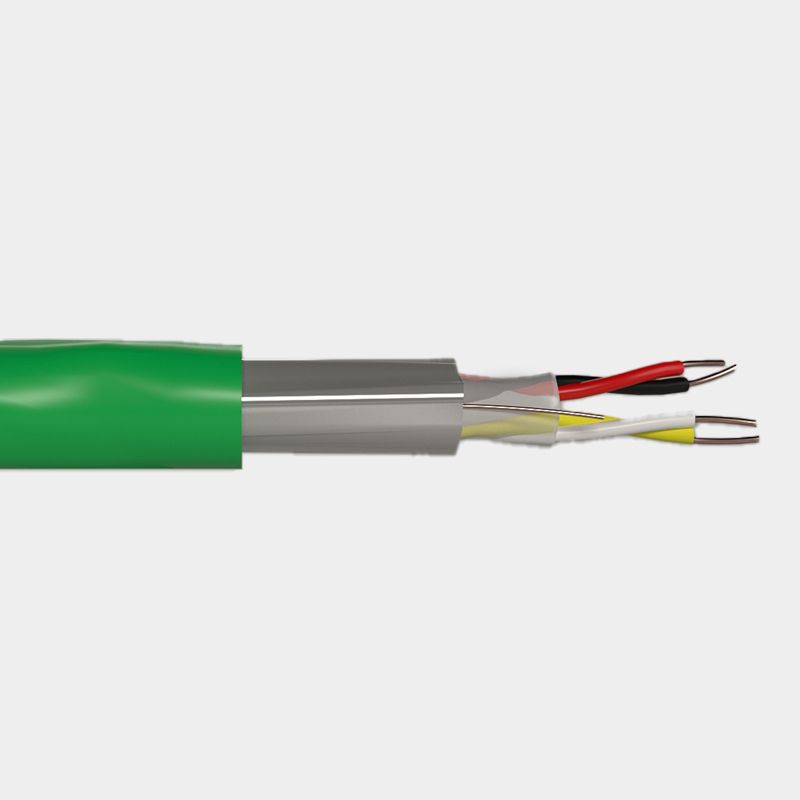

The PAMIX EIB Bus Cable F/UTP PVC is designed for EIB bus used in building control systems. It is utilized for data transmission carrying data in lighting systems KNX, heating systems, air conditioning, and other systems used in building management and control.
General Construction & Design
-
Conductor: 0.8mm, 20 AWG annealed solid bar copper.
-
Pairs: Twisted Pairs cable wires.
-
Insulation: PVC Insulation, OD: 1.45 ± 0.05mm.
-
Drain Wire: Solid TC drain wire 0.4mm.
-
Screening: 100% coverage overall screening using Aluminum foiling/Mylar tape.
-
Outer Sheath: FR/PVC outer sheath compound in Green color (RAL 6017).
-
Color Code: Red, Black, White, Yellow.
-
Dimensions & Physical Characteristics: Cable OD is 5.5mm ± 0.3mm for 1 Pair, and 6.5mm ± 0.3mm for 2 Pair. Bend radius is 10 X cable diameter. Weight is 37.4Kg/km for 1 pair, and 59.4Kg/km for 2 pair.
-
Outer Sheath Marking: PAMIX EIB BUS Cable X2 X 0.8mm FRPVC .
Electrical Performance
-
Characteristic Impedance: 100Ω
-
Nominal Conductor Resistance: 38.5 Ω/km
-
Maximum Unbalance Resistance: 2%
-
Mutual Capacitance: Core to core $\le 100$ nF/km
-
Dielectric Strength: 2.5KV for 5 min
-
Insulation Resistance: 200M Ohm.km
Environmental & Standards Compliance
-
Temperature Range: Operating Temperature: -20°C to +70°C; Installation Temperature: 0°C to +60°C.
-
RoHS & CE: Meets RoHS requirements; CE Compliant (LVD (2014/35/EU), CPR (305/2011)).
-
Flame Propagation: IEC 60332-1/-2, EN 60332-1-2, VDE 0482-332-1-2.
-
EMC: Shielded.
Ordering Information
-
Article Number 1501901: PAMIX EIB BUS Cable 1 x 2 x 0.8 FR/PVC
-
Article Number 1501902: PAMIX EIB BUS Cable 2 x 2 x 0.8 FR/PVC
