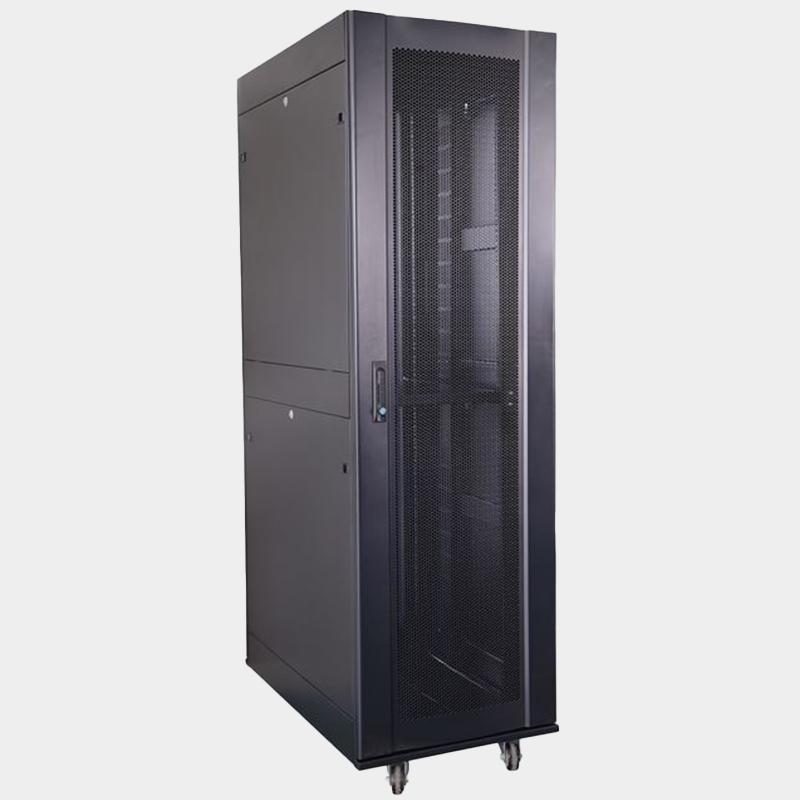

PAMIX PRO 2000 RACK

The PAMIX PRO 2000 FREE STAND racks are designed for data center environments and other applications. They are compatible with well-known server manufacturers and feature mounting profiles that can be adapted to provide changeable depth according to customer hardware installation needs.

Key Advantages & Features

• 1500 Kg Load capacity on stabilizing feet.

• 2 Pairs U shape mounting profile for 19″ standard installation.

• 2 side mounting rails support rack stability.

• Adjustable depth to suite equipment installation.

• 2 side panels each divided into two horizontal parts.

• Removable side panels with lock.

• Reversible doors fixed by hinges.

• Support baying.

• Available as flat pack or factory assembled (factory welded).

• IP20 Protection.

• Comply with IEC60297-3, CE-EMC, TUV, ISO9001, UL & RoHS Compliant.

Design & Construction

• Material: Built with SPCC cold rolled steel material. It features a robust 2.0mm mounting profile, a 2.0mm frame, and 1.2mm material thickness for other components.

• Surface Finishing: Treated with degreasing, pickling, phosphoric, and powder coating.

• Door Locks: Features a front door single lock point and a rear door three lock points.

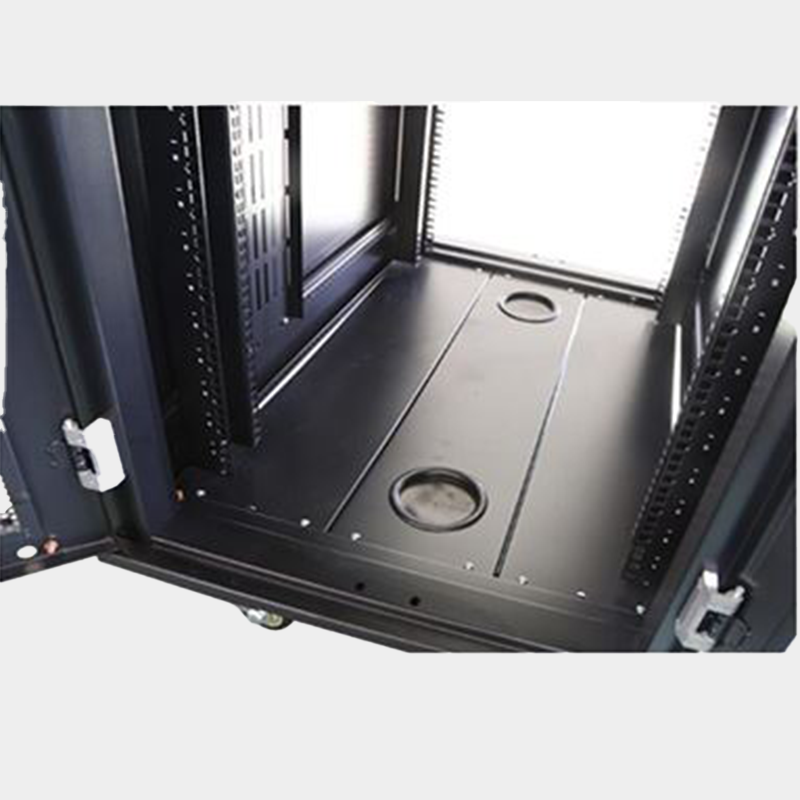

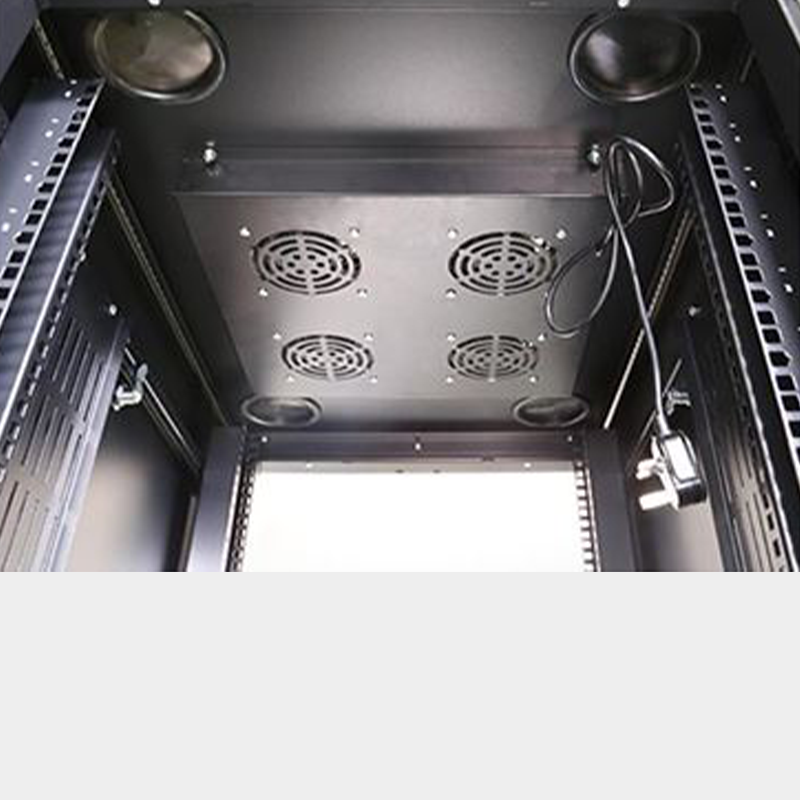

• Cable Entries: Convenient openings in the top cover and bottom panel.

• Colors: Available in Grey RAL7035, Black RAL9004, and Black RAL9005.

Available Sizes & Door Configurations

• Heights: 42U, 45U, 47U.

• Widths: 600mm, 800mm.

• Depths: 1000mm, 1100mm, 1200mm.

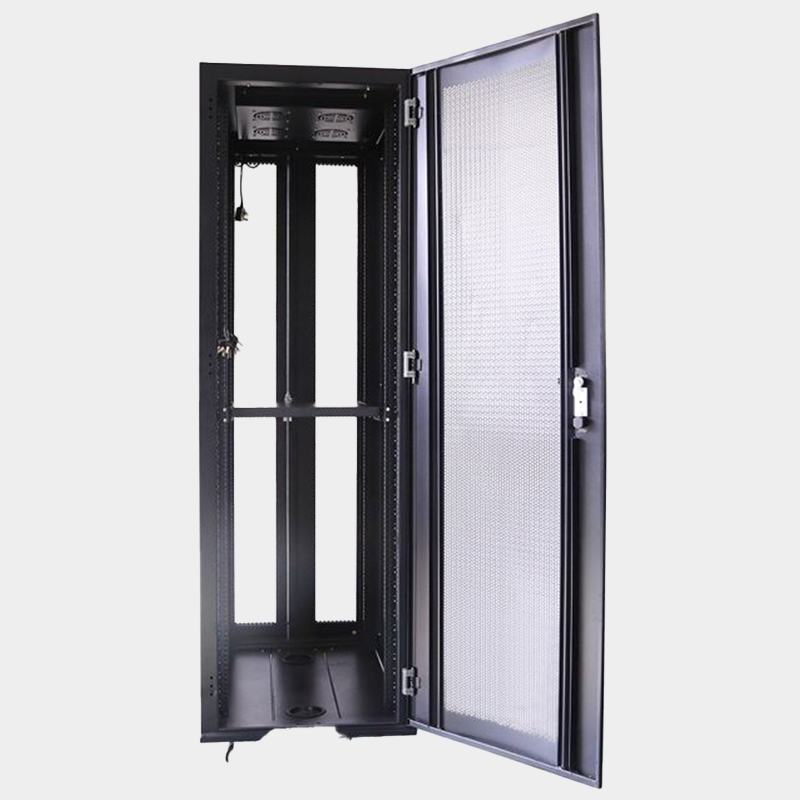

• Door Options: Front door types can be configured as Arc perforated, Flat perforated (1 part), or Flat perforated (2 parts), accompanied by Flat perforated 2-part rear doors.
