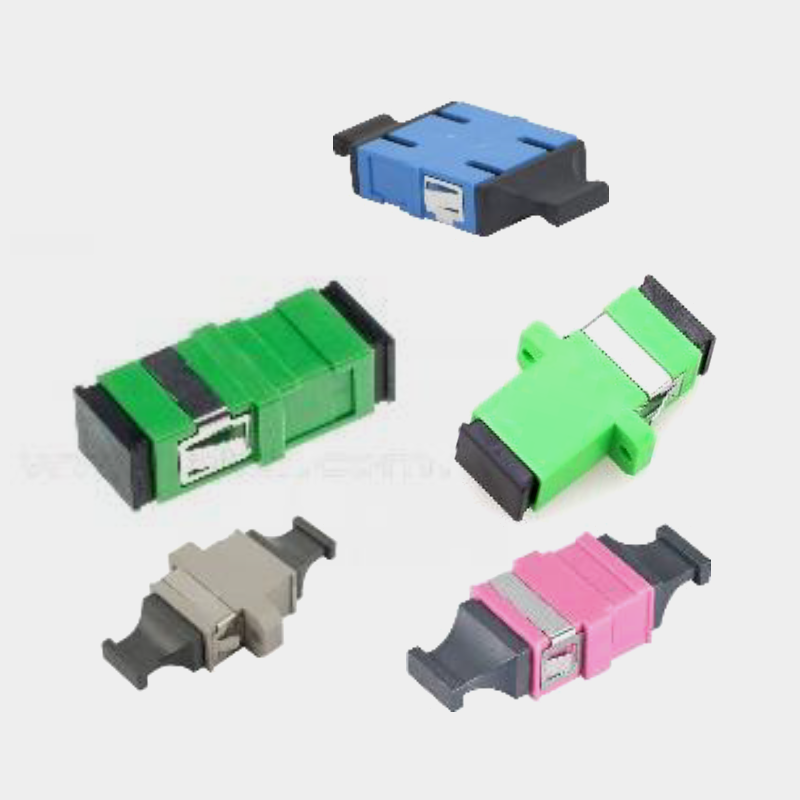

A fiber optic adapter, sometimes called a coupler, is a small part of the total fiber optic network channel. The adapter is used to allow light transmitted to cross between two fiber optic cores terminated to fiber optic connectors with the lowest power loss. PAMIX fiber optic adapters are designed and manufactured to meet standard insertion loss, and are usually supplied with fiber optic patch panels and closures.
Product Features
-
Color coding for easy fiber management.
-
Fiber optic modes: SM, OM1, OM2, OM3, OM4.
-
Fiber counts: Simplex, Duplex, Quad, 8/12/24 fibers.
-
Connector types: ST, FC, SC, LC, E2000, Keystone & MPO.
-
Installation options: Non-flanged adapters feature stainless steel clips for quick and tool-less snap-in installation, while flanged adapters can be fixed with M2 model screws and nuts.
-
Protection & Durability: Includes a dust cap to protect the adapter internal from dust, featuring UPC or APC polish types, 1000 times durability, and a Zirconia ceramic alignment sleeve material.
-
Safety & Compliance: UL94V-0 flammability rate and RoHS Compliant.
Ordering Information (Part Number Configuration)
-
Base Part Numbers by Type & Polish:
-
MM/OM3: SCD (
1016071-xy), LCD (1016075-xy), LCQ (1016079-xy), SC (1016083-xy), LC (1016087-xy), MPO (1016091-xy) -
MM/OM4: SCD (
1016072-xy), LCD (1016076-xy), LCQ (1016080-xy), SC (1016084-xy), LC (1016088-xy), MPO (1016092-xy) -
SM/UPC: SCD (
1016073-xy), LCD (1016077-xy), LCQ (1016081-xy), SC (1016085-xy), LC (1016089-xy), MPO (1016093-xy) -
SM/APC: SCD (
1016074-xy), LCD (1016078-xy), LCQ (1016082-xy), SC (1016086-xy), LC (1016090-xy), MPO (1016094-xy)
-
-
Suffix Variables ($x$ – Flanged Adapter):
0= Flanged,1= Non Flanged -
Suffix Variables ($y$ – Dust Protection):
0= Dust Cap,1= Dust Shutter
