Aerial Cable ASLT-SS05

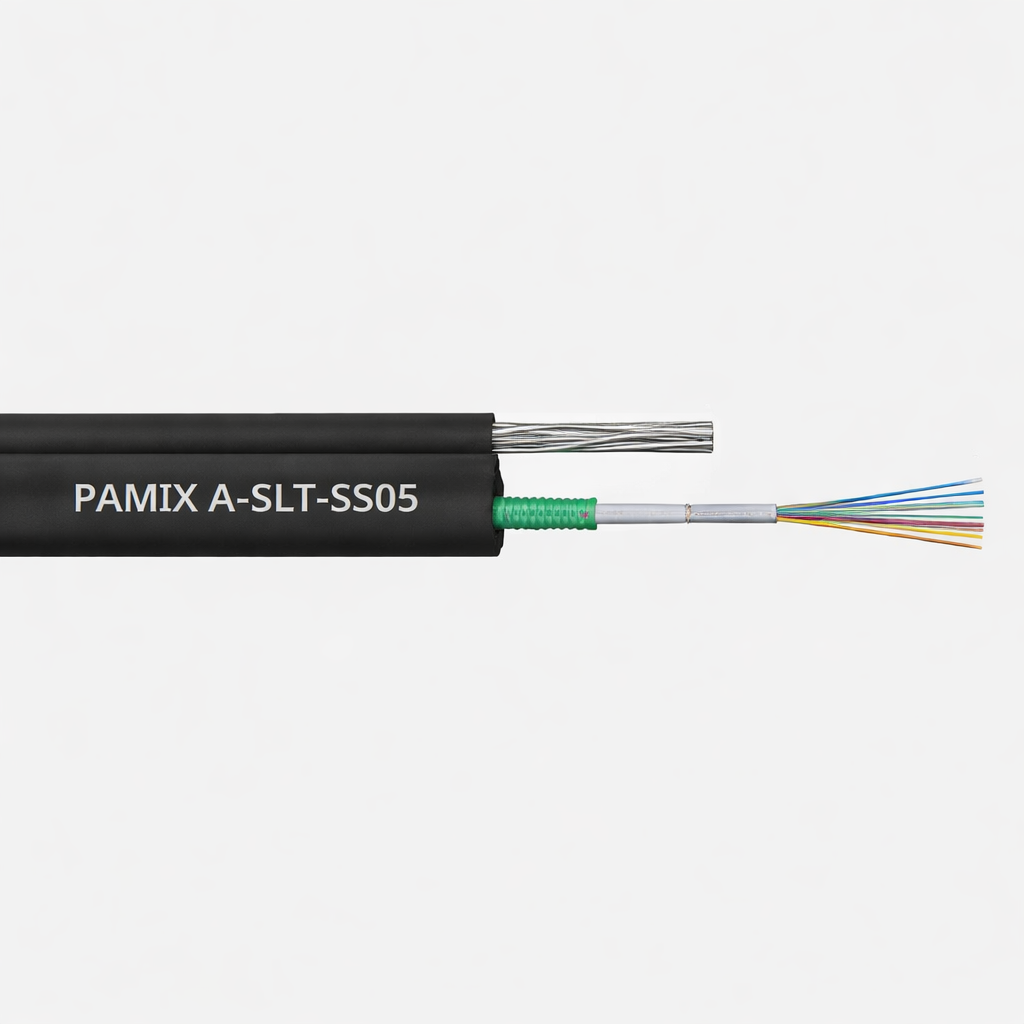

The PAMIX ASLT-SS05 Aerial Figure 8 Optical Fiber Outdoor Cable is a self-supporting outdoor cable engineered specifically for reliable aerial installations. Featuring a highly durable Figure-8 design with an integrated steel wire strength member, this cable ensures excellent mechanical performance and stability in overhead deployments.

General Construction & Application This cable features a central loose tube structure made of PBT, filled with a thixotropic jelly compound and water-blocking material to protect the fibers from moisture. It is armored with corrugated steel tape for enhanced crush resistance and physical protection. The integrated metal strength member (nominal 7 × 0.8 mm steel rope) provides the necessary tension support for aerial spans, while the entire assembly is protected by a tough, single black MDPE outer sheath.

Cable Design Parameters

• Cable Type: Self-Supporting Aerial Outdoor (Figure 8)

• Fiber Type: SM G.652.D (Single Mode)

• Fiber Count: Up to 12 fibers (1 Central Loose Tube)

• Cable Outer Diameter: 5.0 × 9.5 mm

• Strength Member (Messenger Wire): Steel Rope (Nom. 7 × 0.8 mm diameter)

• Armoring: Corrugated Steel Tape (0.22 – 0.25 mm thickness)

• Outer Sheath: MDPE, Black (1.6 ± 0.1 mm thickness)

• Loose Buffer Tube: PBT (2.0 – 2.2 mm Outer Diameter)

• Water Blocking: Thixotropic Jelly Compound (in tube) + Water blocking material

• Tensile Strength (Long / Short): 200 N / 1500 N

• Crush Load (Long / Short): 200 N / 1200 N/100mm

• Bending Radius: 20D

• Operating Temperature: -40°C to +60°C

Optical Characteristics (SM G.652.D)

• Core / Cladding Diameter: 9/125 µm

• Coating Diameter: 250 µm

• Attenuation:

  • @ 1310 nm: ≤ 0.36 dB/km

  • @ 1383 nm: ≤ 0.32 dB/km

  • @ 1550 nm: ≤ 0.21 dB/km

  • @ 1625 nm: ≤ 0.24 dB/km

• Mode Field Diameter: 9.2 ± 0.4 µm (@ 1310nm) / 10.4 ± 0.8 µm (@ 1550nm)

• Zero Dispersion Wavelength: 1300–1324 nm

• Cut-Off Wavelength: ≤ 1260 nm

• Fiber Identification: Standard 12 colors according to EIA/TIA 598 (Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua).

Industry Standards, Testing & Warranty

• Warranty: Backed by a 25-year performance warranty (refer to PAMIX Worldwide warranty terms).

• Standards Compliance: Manufactured and rigorously tested to meet global IEC standards, including IEC 60794-1-2 (E1 Tensile, E3 Crush, E4 Impact, E6 Repeated Bending, E7 Torsion, E11B Bend, F1 Temp Cycling, F5 Water Penetration) and IEC 60793-1 Series for Optical Fibers.

Ordering Information

• Article Number 1012850: ASLT-SS05 Aerial Figure 8 Fiber Cable 4 cores SM

• Article Number 1012851: ASLT-SS05 Aerial Figure 8 Fiber Cable 6 cores SM

• Article Number 1012852: ASLT-SS05 Aerial Figure 8 Fiber Cable 8 cores SM

• Article Number 1012853: ASLT-SS05 Aerial Figure 8 Fiber Cable 12 cores SM
