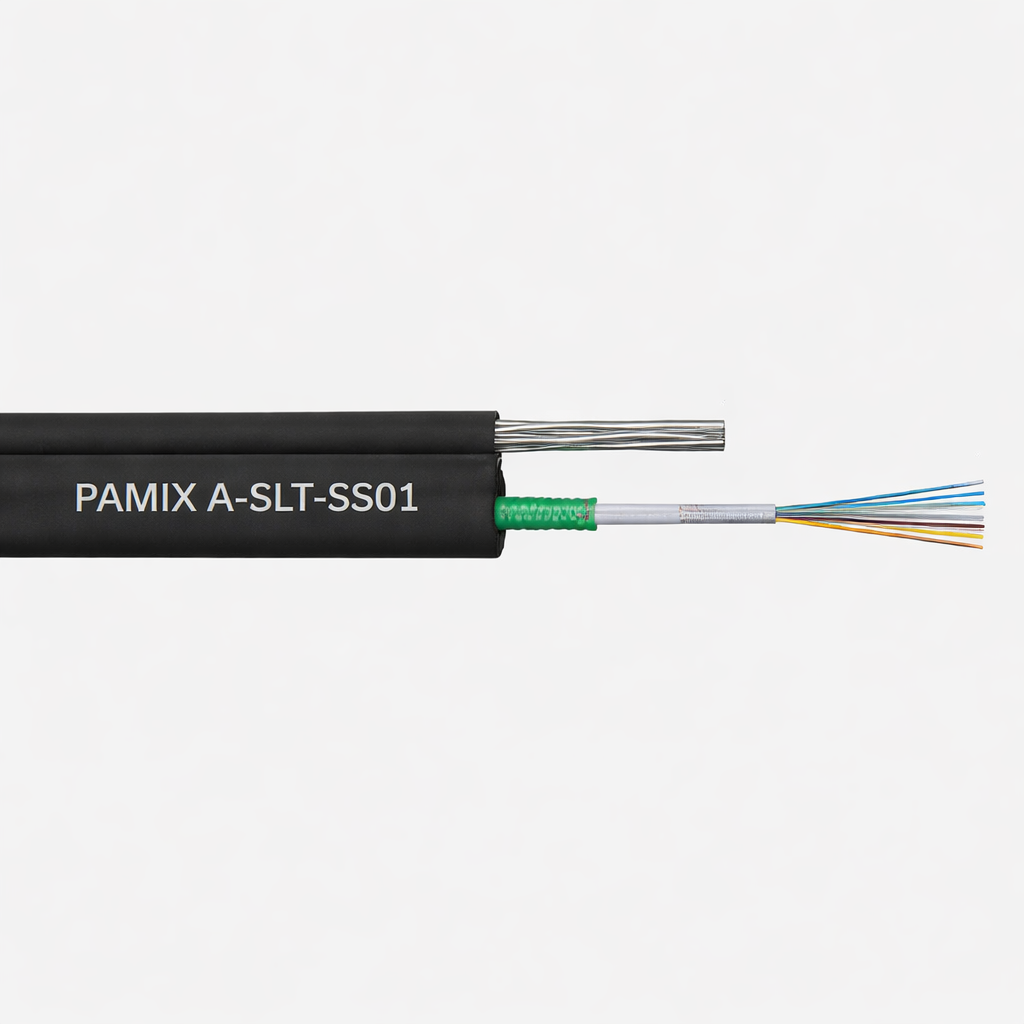

The PAMIX ASLT-SS01 Aerial Figure 8 Optical Fiber Outdoor Cable is a self-supporting cable specifically engineered for highly reliable aerial installations. Built with a robust Figure-8 cross-section that incorporates a heavy-duty steel rope, this cable easily spans outdoor gaps while providing superior protection for the internal fiber cores against mechanical stress and harsh weather conditions.
General Construction & Design
-
Core Configuration: Features a single central loose tube made of PBT (Polybutylene terephthalate), filled with a thixotropic jelly compound to protect up to 12 individually colored optical fibers (EIA/TIA 598 standard colors).
-
Armoring & Moisture Protection: Wrapped in a corrugated steel tape (0.22 – 0.25 mm thickness) and integrated with water-blocking materials to prevent moisture ingress and provide excellent crush resistance.
-
Self-Supporting Strength: The Figure-8 design includes a stranded metal steel rope (Nom. 7 × 0.8 mm) that acts as the primary strength member for aerial suspension.
-
Outer Sheath: Enclosed in a durable, single Black MDPE outer sheath (1.6 mm ± 0.1 thickness) with an overall cable dimension of 5.0 × 9.5 mm. A ripcord is included under the sheath for easy stripping.
Optical Characteristics & Performance
-
Fiber Type: Multi-Mode OM3 (50/125 µm core/cladding) with a 250 µm coating diameter.
-
Attenuation: Maximum 2.3 dB/km at 850 nm and Maximum 0.6 dB/km at 1300 nm (Effective Modal Bandwidth @ 850nm ≥ 2000 MHz·km).
-
Mechanical Durability: Withstands a maximum short-term tensile strength of 1500 N (200 N long-term) and a short-term crush load of 1200 N/100mm (200 N/100mm long-term). The bending radius is 20D.
-
Temperature Range: Operates safely in extreme outdoor temperatures ranging from -40°C to +60°C.
-
Industry Standards: Manufactured and rigorously tested according to IEC 60794-1-2 and IEC 60793-1 series standards (including tensile, crush, impact, water penetration, and temperature cycling tests).
-
Warranty: Backed by a 25-year performance warranty (refer to PAMIX Worldwide warranty terms).
Ordering Information
-
Article Number 1012850: PAMIX ASLT-SS01 Aerial Figure 8 Fiber cable 4 cores, MM OM3, single jacket, Steel Tape, Steel Rope
-
Article Number 1012851: PAMIX ASLT-SS01 Aerial Figure 8 Fiber cable 6 cores, MM OM3, single jacket, Steel Tape, Steel Rope
-
Article Number 1012852: PAMIX ASLT-SS01 Aerial Figure 8 Fiber cable 8 cores, MM OM3, single jacket, Steel Tape, Steel Rope
-
Article Number 1012853: PAMIX ASLT-SS01 Aerial Figure 8 Fiber cable 12 cores, MM OM3, single jacket, Steel Tape, Steel Rope
