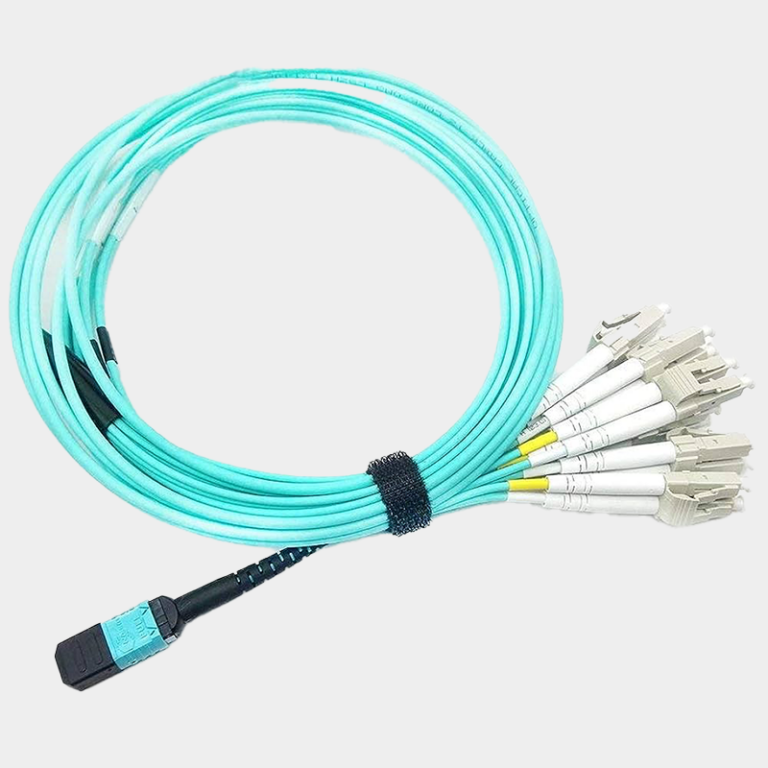

PAMIX Fanout MTP/MPO Cords are shipped pre-terminated and QC tested to ensure immediate functionality before shipping. Designed for plug-and-play deployment, factory termination makes these cords easy and fast for network installers to implement. These fan-out cords are highly versatile and suitable for many applications across data centers and backbone networks.
Key Features & Configuration Options
-
Available with 8, 12, 24, and 48 fibers on request.
-
Side A is usually an MPO type connector, which ships Female as standard (other MPO/MTP types available on request).
-
Side B connectors can be LC or any other required connector type.
-
Available in Single Mode (OS2) and Multi-Mode (OM3, OM4) fiber types.
-
Constructed with bend-insensitive fiber to ensure reliable data transmission.
-
Protected by an FRNC/LSZH cable sheath.
-
Connector polishing can be configured as UPC or APC based on customer request.
-
Available in standard lengths of 1, 3, 5, 10, 15, and 20 meters.
-
IL Performance (Loss) is offered in both Standard and Ultra grades.
Standards Compliance
-
Flame Spread: IEC 60332
-
Smoke Density: IEC 61034
-
Toxic Gases: IEC 60754
-
Connector IEC: IEC 61754, IEC 61755
-
Polarity: TIA-568-C.3 Type A, B, C
Applications
-
Data Center interconnect
-
Premises Backbones
-
Telecommunication Networks
