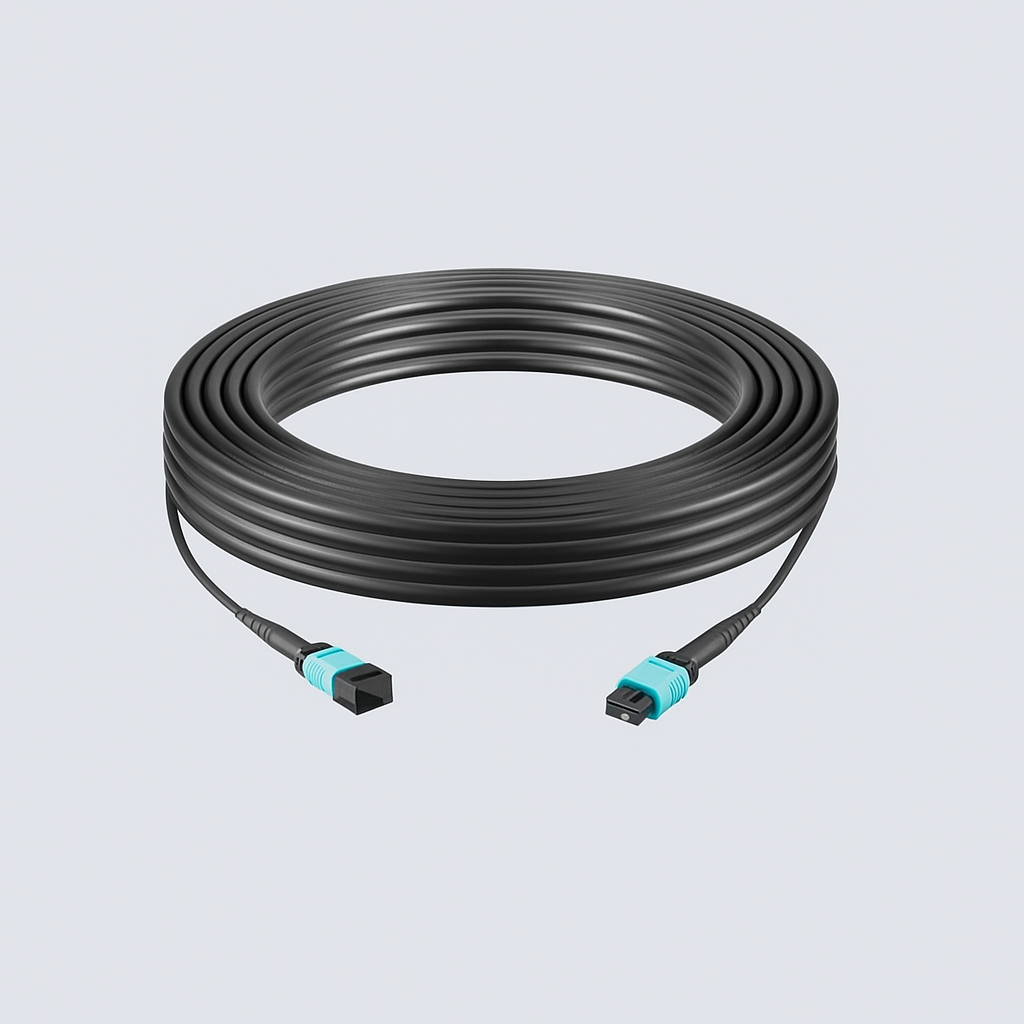

The PAMIX Plug & Play MPO outdoor armored optical fiber cable is a factory terminated and tested cable designed specifically for outdoor applications. Terminated to a single MPO connector on both sides in 8, 12, or 24 fiber configurations, this cable allows for the quick deployment of an optical fiber channel up to 100G. By simply pulling the cable and plugging it directly into an MPO adapter, network installers can save significant installation time, reduce the risk of human mistakes, and avoid the troubles of high insertion loss without sacrificing quality.
Rugged Outdoor Armored Construction
-
Constructed with a spiral steel armor consisting of a helically wound steel strip, which provides exceptional flexibility and ease of installation.
-
The spiral steel armor delivers highly reliable protection against rodents and mechanical stress.
-
The spiral steel is surrounded by a layer of Kevlar aramid yarn for added core strength.
-
The outer jacket is specifically designed for challenging environmental conditions, making the cable UV resistant, water resistant, and dust resistant.
Key Features & Specifications
-
Available in 8, 12, and 24 fibers.
-
Available polarities include Type A (straight), Type B (reversed), and Type C (pairs flipped).
-
Shipped with Female-Female MPO connectors by default, with Male-Male and Female-Male configurations available upon request.
-
Available in Single Mode (G652D, G657A1) and Multi-Mode (OM3, OM4) fiber types.
-
Features a flame-retardant FRNC/LSZH cable sheath.
-
Standard catalog lengths range from 10 meters up to 80 meters.
Primary Applications
-
Data Center interconnect.
-
Premises Backbones.
-
Telecommunication Networks.
