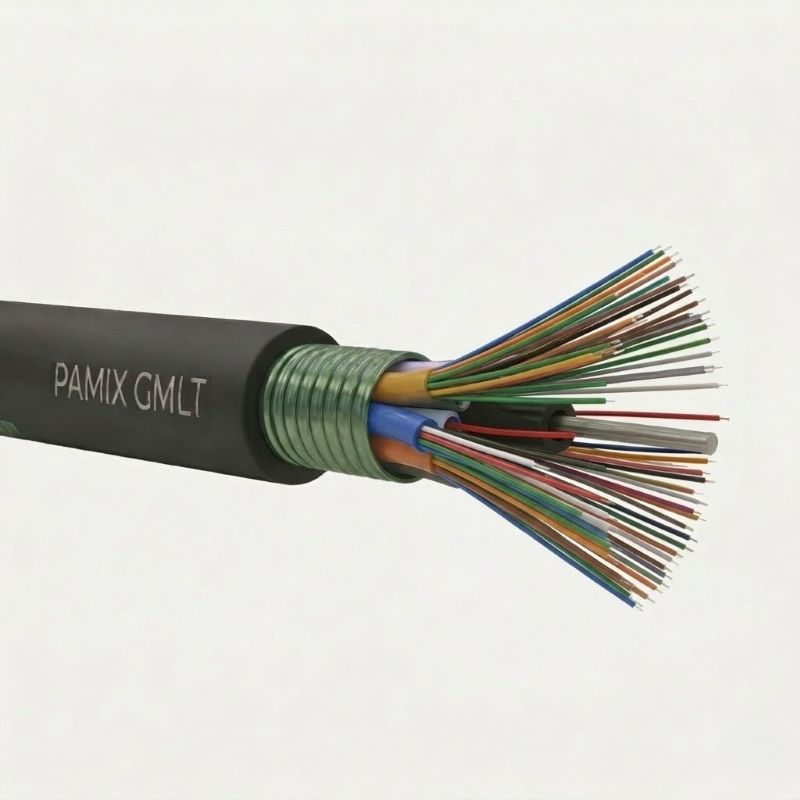

GMLT-SS15 Multi Loose Tube

The PAMIX GMLT-SS15 Outdoor Optical Fiber Cable is a rugged, steel-armored cable engineered for demanding outdoor environments. Suitable for underground ducts, laying on cable trays, and direct buried applications, this multi-loose tube cable provides exceptional mechanical performance, temperature stability, and superior protection against rodents.

General Construction & Application This cable is built around a robust 1.9 mm steel central strength member. It features a multi-loose tube structure made of PBT, with each tube filled with a thixotropic jelly compound and surrounded by a flooding jelly compound for complete water blocking. A 0.2 mm corrugated steel tape armor layer ensures high rodent protection and excellent crush resistance. The entire core is protected by a UV-resistant, 1.5 mm black PE outer jacket equipped with rip cords for easy stripping. This design prevents loose tube shrinking and offers excellent hydrolysis resistance.

Cable Design Parameters

• Cable Type: Outdoor Steel Armored

• Fiber Type: SM G.652.D (Single Mode)

• Maximum Fiber Cores: Up to 72 cores

• Fibers per Loose Tube: Up to 12 fibers

• Cable Outer Diameter: 9.5 ± 0.5 mm

• Central Strength Member: 1.9 mm Steel

• Armoring: Corrugated Steel Tape (0.2 mm thickness)

• Outer Sheath: PE, Black (1.5 ± 0.1 mm thickness)

• Water Blocking: Thixotropic Jelly Compound (in tubes) + Flooding Jelly Compound (between tubes)

• Tensile Strength (Long / Short): 600 N / 1500 N

• Crush Load (Long / Short): 300 N / 1000 N/100mm

• Bending Radius (Static / Dynamic): 10D / 20D

• Operating Temperature: -40 °C to +60 °C

Optical Characteristics (SM G.652.D)

• Core / Cladding Diameter: 9/125 µm

• Coating Diameter: 250 µm

• Attenuation:

  • @ 1310 nm: ≤ 0.36 dB/km

  • @ 1383 nm: ≤ 0.32 dB/km

  • @ 1550 nm: ≤ 0.22 dB/km

  • @ 1625 nm: ≤ 0.24 dB/km

• Mode Field Diameter: 9.2 ± 0.4 µm (@ 1310nm) / 10.4 ± 0.8 µm (@ 1550nm)

• Zero Dispersion Wavelength: 1300 – 1324 nm

• Cable Cut-Off Wavelength (λ cc): ≤ 1260 nm

• Fiber Identification: Standard 12 colors according to EIA/TIA 598 (Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua).

Industry Standards & Testing Manufactured and rigorously tested to meet global IEC standards, including:

• Mechanical & Environmental: IEC 60794-1-2 (E1 Tensile, E3 Crush, E4 Impact, E6 Pending, E7 Torsion, F1 Temp Cycling, F5B Water Penetration)

Ordering Information

• Article Number 1012700: PAMIX GMLT-SS15 Outdoor Optical fiber SM G.652.D Cable 4 x 6 cores (24 Core), single jacket, Steel Tape

• Article Number 1012701: PAMIX GMLT-SS15 Outdoor Optical fiber SM G.652.D Cable 2 x 12 cores (24 Core), single jacket, Steel Tape

• Article Number 1012702: PAMIX GMLT-SS15 Outdoor Optical fiber SM G.652.D Cable 3 x 12 cores (36 Core), single jacket, Steel Tape

• Article Number 1012703: PAMIX GMLT-SS15 Outdoor Optical fiber SM G.652.D Cable 4 x 12 cores (48 Core), single jacket, Steel Tape

• Article Number 1012704: PAMIX GMLT-SS15 Outdoor Optical fiber SM G.652.D Cable 6 x 12 cores (72 Core), single jacket, Steel Tape
