MCH-14-2PS Media Converter Chassis

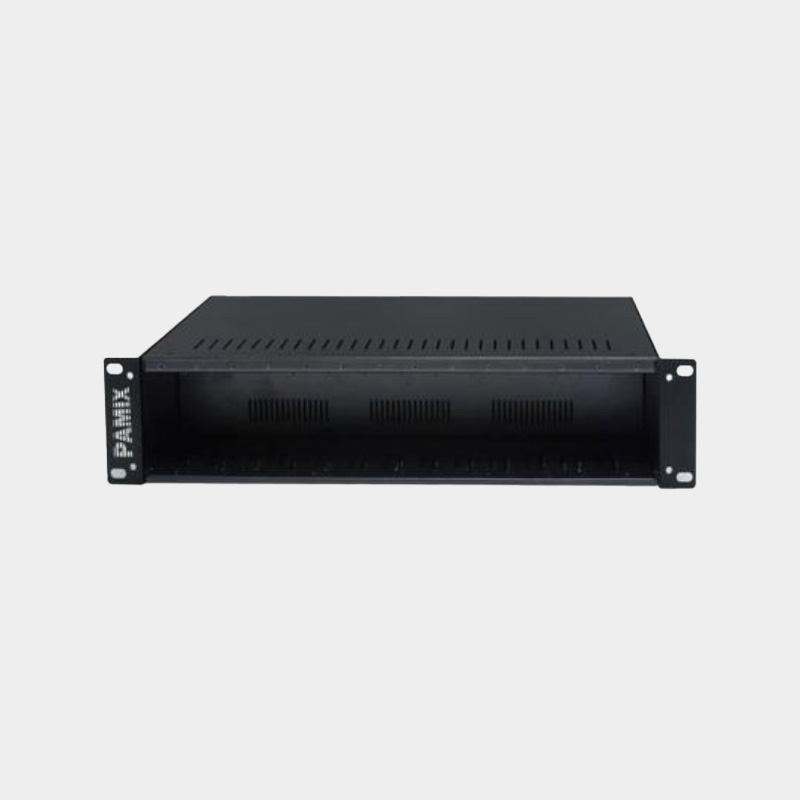

The PAMIX Media Converter Chassis is a highly reliable 14-slot, 2U height rack chassis designed specifically for telecom rooms. Engineered to fit into any standard 19” rack cabinet, it provides a centralized, cost-effective solution for housing and powering multiple media converters simultaneously.

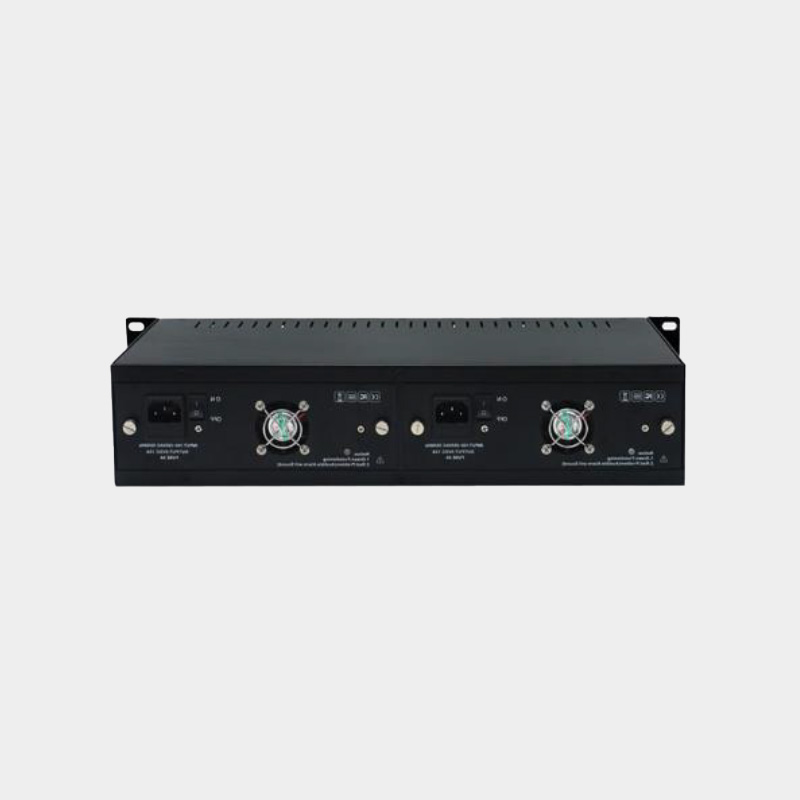

High Availability & Redundancy Built for uninterrupted performance, this chassis is equipped with physically and electrically separated dual power supplies. It supports both AC and DC power sources, allowing you to configure the chassis with identical or mixed power supplies (AC & AC, DC & DC, or AC & DC). Operating in an active/standby configuration, the system supports automatic power switchover to ensure continuous network operation if one power supply fails. Cooling fans installed directly on the power supplies guarantee excellent airflow and temperature dissipation.

Key Features & Flexibility

• Standard Fit: 2U height, 19” rack-mountable chassis design for compact and easy installation.

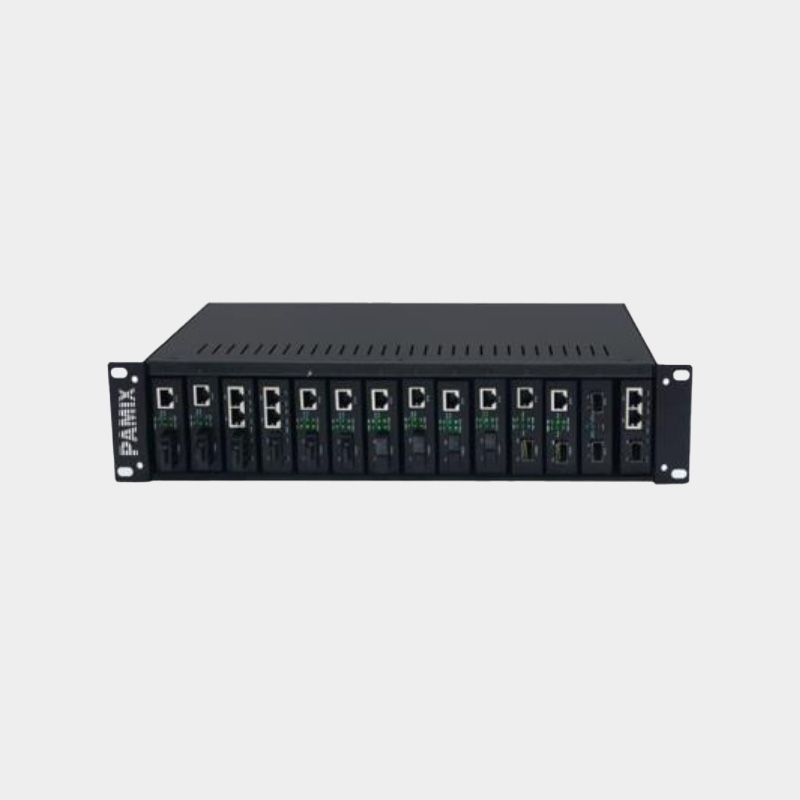

• High Capacity: 14 available slots that can accommodate different models of media converters within the same chassis.

• Certified Safety: Fully conforms to CE, FCC, and RoHS standards.

Technical Specifications

• Capacity: 14 Slots

• Height: 2U

• Dimensions: 427 x 230 x 90 mm

• Input Power: 100 ~ 265V AC, 50/60 Hz / 40 ~ 70V DC

• Output Power: DC 5V, 12A

• Ripple: ≤ 20mv

• Power Configuration: Single or Dual Power Supplies (AC & AC, DC & DC, or AC & DC)

• Power Consumption: Single Power Supply: 60W max / Dual Power Supply: 120W max

• LED Indicators: Power indicator

• Operating Temperature: -20°C to 65°C

• Operating Humidity: 5% to 95% (non-condensing)

Ordering Information

• Article Number 5101091: PAMIX MCH-14-2PS Rack Media Converter Chassis 14 slot dual power supplies 220V ac Installed

• Article Number 5101092: PAMIX MCH-14-2PS Rack Media Converter Chassis 14 slot dual power supplies 48V dc Installed

• Article Number 5101093: PAMIX MCH-14-2PS Rack Media Converter Chassis 14 slot 48V dc & 220V ac power supplies Installed
