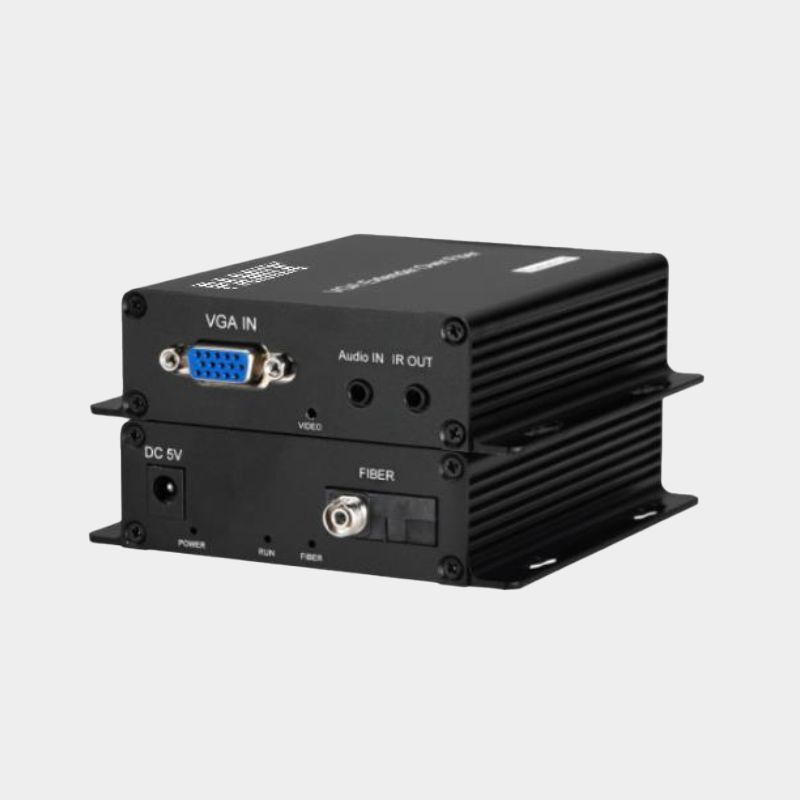

The PAMIX MCV-8100 VGA to Fiber Optic Extender transmits high-quality VGA audio and video signals over distances up to 120km. Utilizing the TCP/IP protocol, it seamlessly supports both one-to-one configurations and massive one-to-many networks (up to 250 points) using a standard Ethernet switch. With built-in ESD protection and true plug-and-play functionality requiring no configuration, it is widely used in various demanding display and remote control applications.
Advanced Signal & Networking Capabilities
-
High-Definition Video: Supports a maximum resolution of 1920 x 1080p @ 60Hz and lower.
-
Smart Calibration: Features automatic phase detection, position calibration, and gain calibration for optimal image quality.
-
Comprehensive Control: Supports KVM (USB Mouse & Keyboard) to remotely control the signal source, independent analog audio, and reverse IR (including TV IR box support).
-
Flexible Compatibility: Supports mutual communication, allowing users to connect HDMI/DVI on one end and VGA on the other.
-
Long-Distance Reach: Transmits over Single Mode (or Multi-Mode) single fiber up to 120 Km.
Technical Specifications
-
Video Interface: HD-15 Female VGA
-
Video Resolutions: 1080p @ 24/25/30/50/60Hz, 1080i @ 50/60 Hz, 720p @ 25/30/50/60 Hz, 576i/p, 480i/p
-
Max Pixel Clock / Effective Cable Length: 148.5 MHz / ≤ 10 meters
-
Audio Interface: 3.5mm stereo socket (Analog stereo channel), 24-bit sampling depth, 32K–192K sampling frequencies, 96dB dynamic bandwidth, -88dB THD
-
KVM Interface (USB): Version 1.1, USB Female type A (Tx/Rx)
-
IR Interface: 3.5mm, Digital signal (20 – 60 KHz), Reverse IR direction
-
Optical Interface: FC, SC, ST or SFP compatible (Single Mode/Multi-Mode, single fiber, 1310/1550 nm)
-
Power Input / Consumption: 5V DC / < 3.0W per transmitter or receiver (Power Adapter: 100 – 240 V AC 50/60 Hz to 5V DC, 1A)
-
Environment: Operating Temperature -20°C to 60°C / Humidity 5% – 95% non-condensing
-
Mechanical: Aluminum enclosure with IP40 protection / Dimensions: 104 x 104 x 28 mm / Wall mount installation supported
Ordering Information
-
Article Number 5101001-xx: PAMIX MCV-8100 VGA to Single Mode Fiber Extender Pair, VGA Video, KVM, 3.5mm audio, Revers IR.
-
Article Number 5101002-xx: PAMIX MCV-8100 VGA to Single Mode Fiber Extender Pair, VGA Video, 3.5mm audio, Revers IR.
-
(Note: The ‘xx’ suffix denotes the optical connector type: SC = SC connector, FC = FC connector, ST = ST connector, SF = SFP transceiver).
