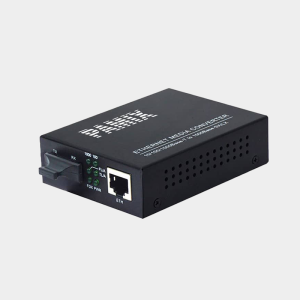

The PAMIX Optical Fiber Media Converter (1G Fiber to 1G Ethernet) efficiently handles signal conversion between 10/100/1000M Ethernet RJ45 ports and optical fiber. Designed for long-distance data and video signal transmission, it offers exceptional stability and is well-suited for harsh environments thanks to its specialized double-side ventilation design and rugged IP30 metal enclosure.
Advanced Networking & Flexibility
-
Auto-Negotiation: Supports auto-negotiable 10/100/1000M network speeds and full/half-duplex transmission modes (IEEE 802.3x).
-
High Performance: Features a 1M bit buffer space, 2K MAC address support, and supports up to 16 groups of VLANs.
-
Fiber Compatibility: Supports both Single-Mode and Multi-Mode fiber utilizing simplex or duplex connectors.
-
Plug & Play: Hot plug and play functionality for rapid, hassle-free installation.
-
Extended Reach: Supports transmission distances up to 60Km over optical fiber (depending on the specific model configuration).
Technical Specifications
-
Ethernet Port: 1 RJ45 Port 10/100/1000M (≤100 meter)
-
Fiber Port: 1 SCD or 1 SC Port 1.25G (depending on model)
-
Optical Characteristics: Single Mode (1310/1550nm) / Multimode (850nm)
-
Performance Metrics: 1M bit Buffer Space, Store and Forward transfer mode, Flow Control Supported
-
Standard Protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x
-
Power Adapter Input: AC 100-240 V, 50/60Hz (Optional -48V dc)
-
Media Converter Input / Consumption: DC 5-12V / ≤ 3 Watt (Adapter Output: 5V dc, Socket Ø2.5mm)
-
Environment: Working Temperature -20~60°C / Storage Temperature -40~70°C / Humidity 5%~95% non-condensing
-
Mechanical & Enclosure: Metal IP30 Enclosure / Dimensions: 95 x 70 x 26 mm
-
LED Indicators: PWR (Power indicator), Fx (Optical link is connected), Tx (Twisted pairs link is connected)
Ordering Information
-
Article Number 5101060: PAMIX MCI-1110 Media Converter 1 RJ45 10/100/1000M Ports, Dual Fiber, SCD 1000M Multimode, 850nm, 550 meter
-
Article Number 5101061: PAMIX MCI-1110 Media Converter 1 RJ45 10/100/1000M Ports, Dual Fiber, SCD 1000M Single Mode, 1310nm, 20km
-

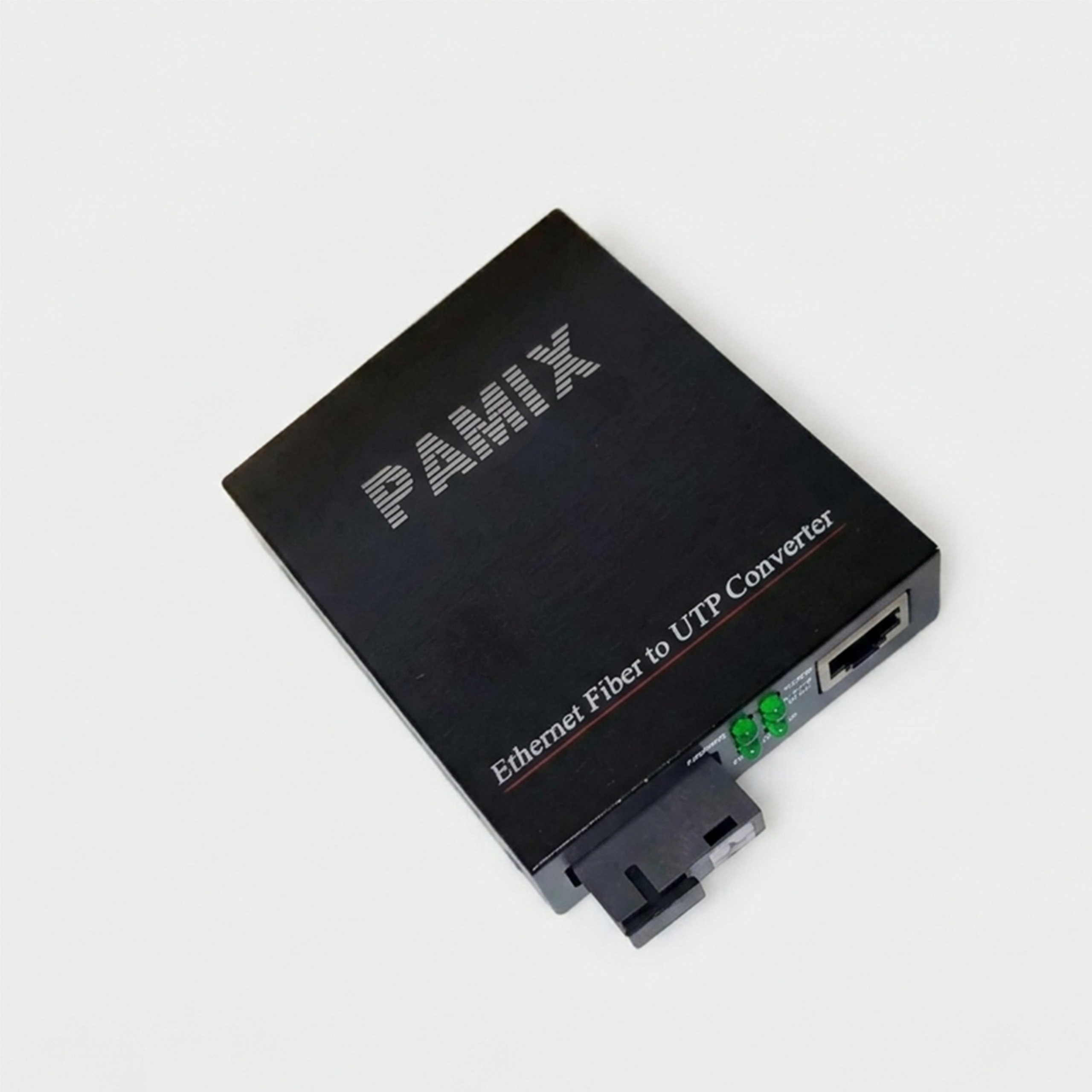

Article Number 5101062-A: PAMIX MCI-1110-E Media Converter 1 RJ45 10/100/1000M Ports, Single Fiber, SC 1000M Single Mode, 1310TX/1550RX, 20km
-
Article Number 5101062-B: PAMIX MCI-1110-E Media Converter 1 RJ45 10/100/1000M Ports, Single Fiber, SC 1000M Single Mode, 1550TX/1310RX, 20km
-
Article Number 5101062-AB: PAMIX MCI-1110-E Media Converter 1 RJ45 10/100/1000M Ports, Single Fiber, SC 1000M Single Mode, 20km, Pair (A & B)
-
(Note: 40/60/80/120km distances and other connectors are available on special request).
