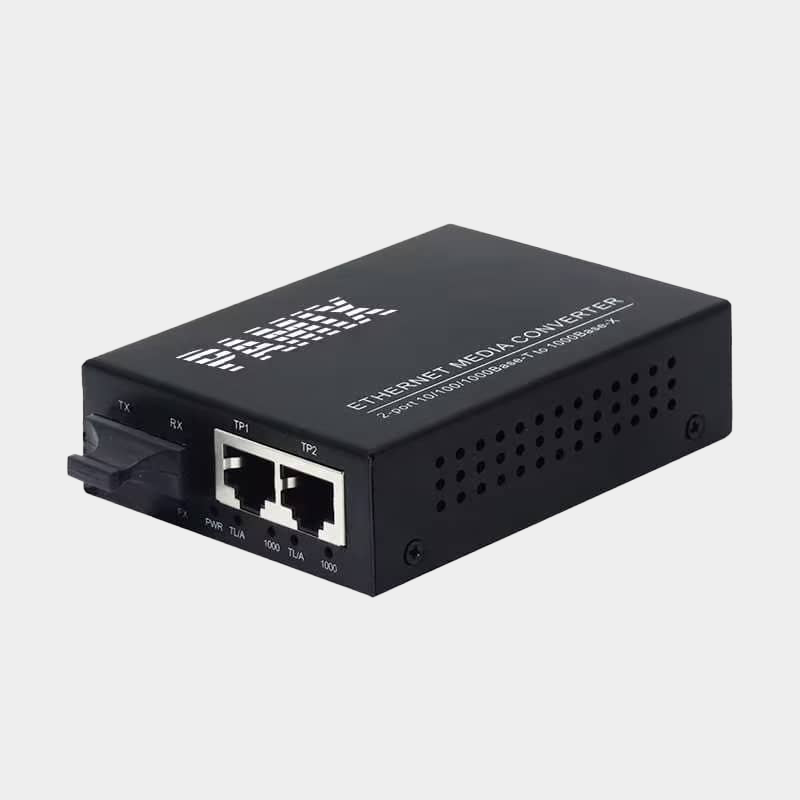

MCI-1120 Media Converter

The PAMIX MCI-1120 Ethernet Optical Fiber Media Converter is engineered to efficiently convert signals between 10/100/1000M Ethernet RJ45 ports and fiber SCD ports. Designed to carry out long-distance data and video signal transmission, it supports both single-mode and multi-mode fiber types. Thanks to its double-side ventilation design, low power consumption, and ESD surge protection, this media converter provides stable, continuous operation even in harsh environments.

Advanced Networking & Flexibility This hot plug-and-play device features auto-negotiable 10/100/1000M network speeds with auto-MDI/MDI-X, alongside auto-negotiable full-duplex and half-duplex transmission modes (IEEE 802.3x). It supports QoS packets for VoIP and the STP protocol (Spanning Tree). Its versatile IP30 metal enclosure supports desktop placement, wall mounting (with an optional kit), or integration into a rack chassis.

Technical Specifications

• Ethernet Ports: 10/100/1000M RJ45 (Cat5/Cat5e/Cat6/Cat6a/Cat7/Cat7A ≤100 meter)

• SCD Port: 1.25G (SM OS1/OS2 ≤ 120km, MM OM1/OM2/OM3/OM4 ≤ 550 meters)

• Optical Characteristics: Multimode (850nm), Single Mode (1310/1550nm)

• Performance: 4Gbps Switching Capacity, 1M bit Buffer Space, 1916 Bytes Jumbo Frame, < 10µs Time Delay

• Power Adapter Input: AC 100-240 V, 50/60Hz (Optional -48V dc)

• Media Converter Input / Consumption: DC 5-12V dc, 2A / ≤ 3 Watt

• Standard Protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x (Flow control), IEEE802.1d (Spanning Tree)

• Environment: Working Temperature -20~65°C / Storage -40~85°C

• Enclosure & Size: Metal IP30 / 94 x 70 x 26 mm

• Certifications: CE, FCC, RoHS 2.0 Compliant

• LED Indicators: PWR, FX, FL/A, FDX, TL/A, 100, 1000

Ordering Information

• Article Number 5101031: PAMIX MCI-1120 Media Converter 2 RJ45 10/100/1000M Ports, Dual Fiber, SCD 1000M Multimode, 850nm, 550 meter

• Article Number 5101032: PAMIX MCI-1120 Media Converter 2 RJ45 10/100/1000M Ports, Dual Fiber, SCD 1000M Single Mode, 1310nm, 20km

• Article Number 5101033: PAMIX MCI-1120 Media Converter 2 RJ45 10/100/1000M Ports, Single Fiber, SC 1000M Single Mode, 1310TX/1550RX, 20km

• Article Number 5101034: PAMIX MCI-1120 Media Converter 2 RJ45 10/100/1000M Ports, Single Fiber, SC 1000M Single Mode, 1550TX/1310RX, 20km

• Article Number 5101070: PAMIX MCI-1120 Media Converter 2 RJ45 10/100/1000M Ports, Single Fiber, SC 1000M Single Mode, 20km, Pair (1310TX/1550RX & 1550TX/1310RX)

• Article Number 5101099: Wall mount installation kit

• (Note: 40/60/80/120km distances and FC/ST connectors are available on special request).
