PAMIX 635 CAT7 SFTP

The PAMIX 635 CAT 7 Data Cable is an elite, fully shielded solution engineered specifically for horizontal cabling and building backbones. Designed for the flawless transmission of digital and analog voice, video, and data signals, this high-performance cable effortlessly supports all ICT network applications up to a Class F (600 MHz) frequency. It is also fully equipped to handle demanding Power over Ethernet (PoE/PoE+) applications.

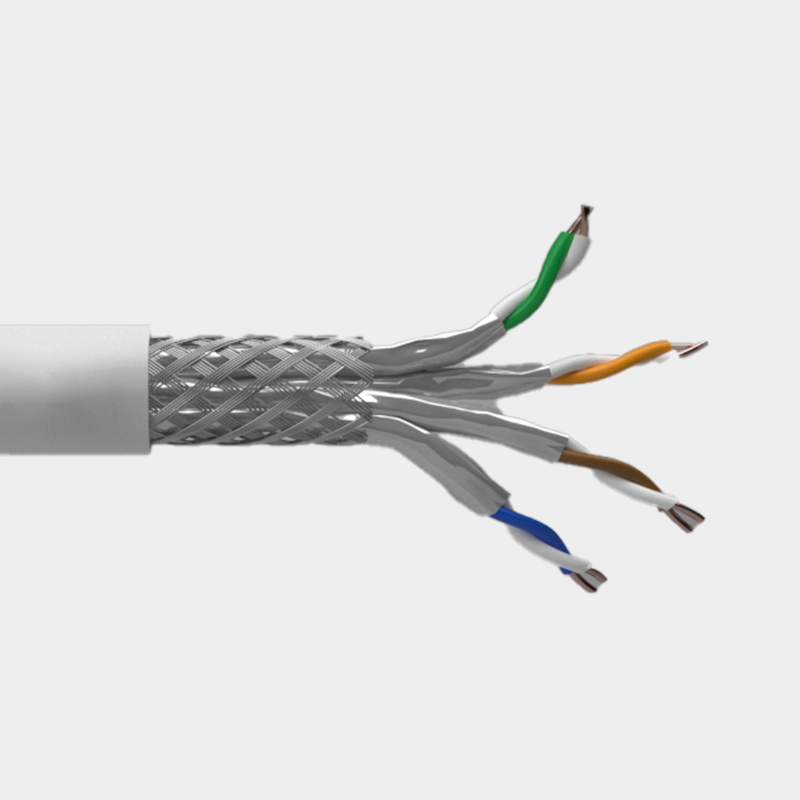

General Construction & Design This Cat.7 S/FTP cable exceeds the strict requirements of ISO/IEC 11801, IEC 61156-5, EN 50173-1, and EN 50288-4-1 standards. It delivers an exceptional shielding effect by combining individually screened pairs (Al/Mylar) with an overall tinned copper braid screening (35% coverage) to completely neutralize electromagnetic interference. For maximum indoor safety, it is housed in a Low Smoke Zero Halogen and Flame Retardant Non-Corrosive (FRNC-LSZH) outer jacket. It is completely compatible with all current connecting hardware in accordance with EN 50173 and ISO/IEC 11801.

Technical Specifications

• Conductors: SOLID-Bare Copper, 23 AWG (0.58mm ±0.005), Total 8 Conductors (4 Pairs)

• Insulation: Skin-foam-skin PE

• Inner Screening: Al/Mylar (individually screened pairs)

• Outer Screening: Tinned Copper Braid (35% coverage)

• Outer Jacket: RoHS-compliant FRNC-LSZH, 0.55mm ±0.05 average thickness

• Dimensions: Cable Diameter 7.6mm ±0.5

• Accessibility: Includes a ripcord for easy stripping

• Color Code: Compliant with TIA/EIA 568-B

Electrical Characteristics (at 20°C)

• Impedance:

  • 100 ±15 Ω @ 1.0 – 100.0 MHz

  • 100 ±18 Ω @ 100.0 – 250.0 MHz

  • 100 ±25 Ω @ 250.0 – 600.0 MHz

• Delay Skew: ≤ 25 ns/100m

• Propagation Velocity: 78%

• DC Resistance: 64 Ω/km

• DC Conductor Resistance Unbalance: 2.0% maximum

• Capacitance: 330 pf/100m maximum unbalance to ground

Industry Standards

• Cabling Standards: ISO/IEC 11801-1/2:2017 (Ed. 1.0), IEC 61156-5:2020 (Ed. 3.0)

• European Standards: EN 50173-1/2:2018, EN 50288-4-1:2013

• Safety (Flammability, Halogen Acidity & Smoke): IEC 60332-1-1/2:2015, IEC 60754-2:2019, IEC 61034-1/2:2019

Ordering Information

• Article Number 1001211: Data Cable 635 Cat 7 / Class F S/FTP FRNC/LSZH 4P, Blue

• Article Number 1001212: Data Cable 635 Cat 7 / Class F S/FTP FRNC/LSZH 4P, Red

• Article Number 1001213: Data Cable 635 Cat 7 / Class F S/FTP FRNC/LSZH 4P, Grey

• Article Number 1001214: Data Cable 635 Cat 7 / Class F S/FTP FRNC/LSZH 4P, Green

• Article Number 1001215: Data Cable 635 Cat 7 / Class F S/FTP FRNC/LSZH 4P, Yellow

• Article Number 1001216: Data Cable 635 Cat 7 / Class F S/FTP FRNC/LSZH 4P, Orange

• (Note: Cable sheath printing is marked as PAMIX 635 Cat7 / Class F S/FTP 4P AWG23 FRNC/LSZH).
