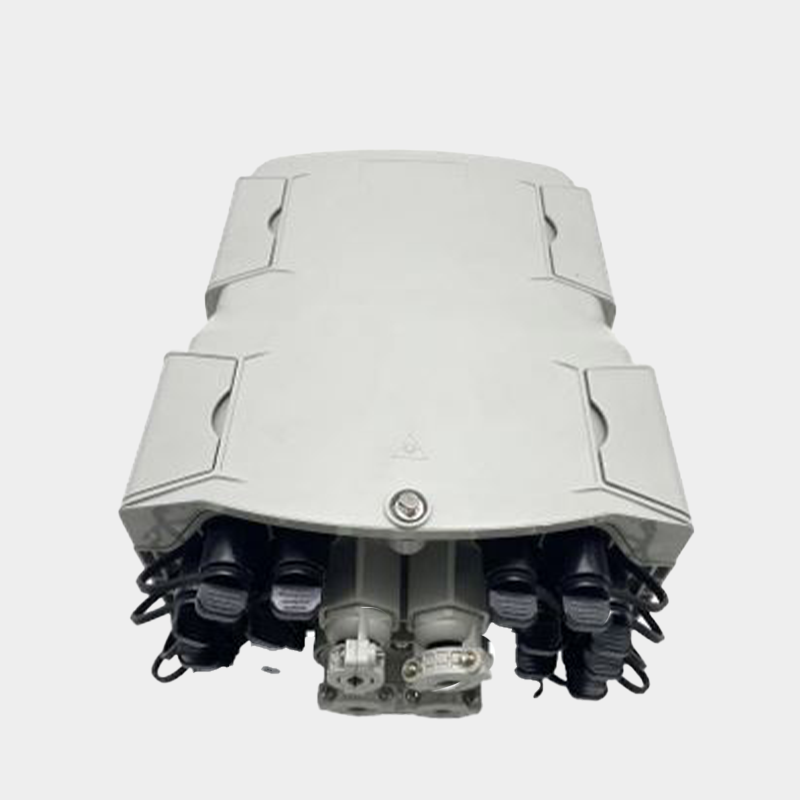

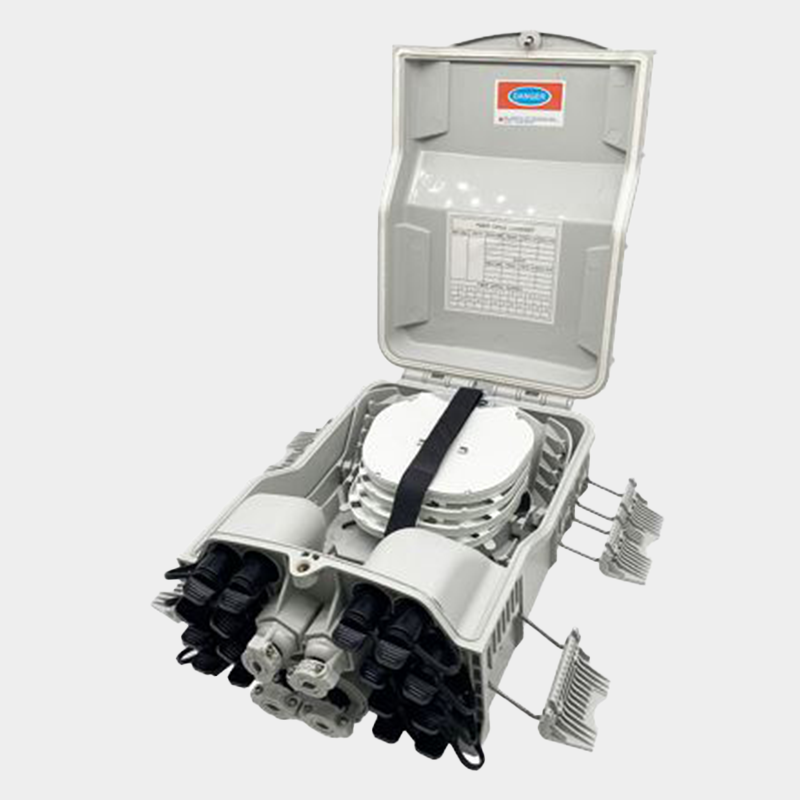

The PAMIX Fiber Distribution Box DB15-OP-16PT is widely used in FTTH applications as a termination point for drop cables. It is suitable for fiber splicing, splitting, and distribution, maximizing your fiber core capacity within a very limited space. It is generally installed on walls, poles, or aerially (using steel rope) and is suitable for tube-type PLC splitters.
General Features & Applications
-
Applications: Ideal for FTTH access networks, telecommunication networks, CATV networks, and data communication networks.
-
Design & Protection: Features an outdoor usage, water, dust, and UV-proof IP65 design.
-
Organization: Utilizes a tube PLC type with easy internal cable management.
-
Material & Color: Constructed from PC+ABS material available in Black, White, or Grey colors.
-
Mounting: Supports wall, pole, or aerial mounting.
Technical Specifications
-
Size: $320 \times 210 \times 125\text{ mm}$
-
Material & Color: PC+ABS material in Black, White, or Grey
-
Splice Trays: 4 trays
-
Splice Capacity: 16 cores minimum
-
Adapter Type & Capacity: SC adapter type with a capacity of 16
-
Cable Inputs / Outputs: 2 branch cable inputs ($\varnothing 6.0$ to $\varnothing 15.0\text{ mm}$), uncut cable port, and 16 incoming cable outputs ($\varnothing 6.0$ to $\varnothing 15.0\text{ mm}$).
-
Installation Method: Wall, Pole Mounted, or Aerial
-
Operating Temperature: $-40^\circ\text{C}$ to $85^\circ\text{C}$
Package Includes
-
Key, splice accessories, wall and pole mounting accessories, and PLC splitter (tube type based on model).
Ordering Information
-
Article Number 1016790: Fiber distribution, 2 branch cables, uncut cable, 16 cable outputs, one 1:16 PLC Tube Splitter
-
Article Number 1016791: Fiber distribution, 2 main cable inputs, 16 cable outputs, two 1:8 PLC Tube Splitter
-
Article Number 1016792: Fiber distribution, 2 main cable inputs, 16 cable outputs, one 1:8 PLC Tube Splitter
-
Article Number 1016793: Fiber distribution, 2 main cable inputs, 16 cable outputs, empty no PLC Splitter
-
(Note: Customized distribution boxes can be produced based on customer request).
