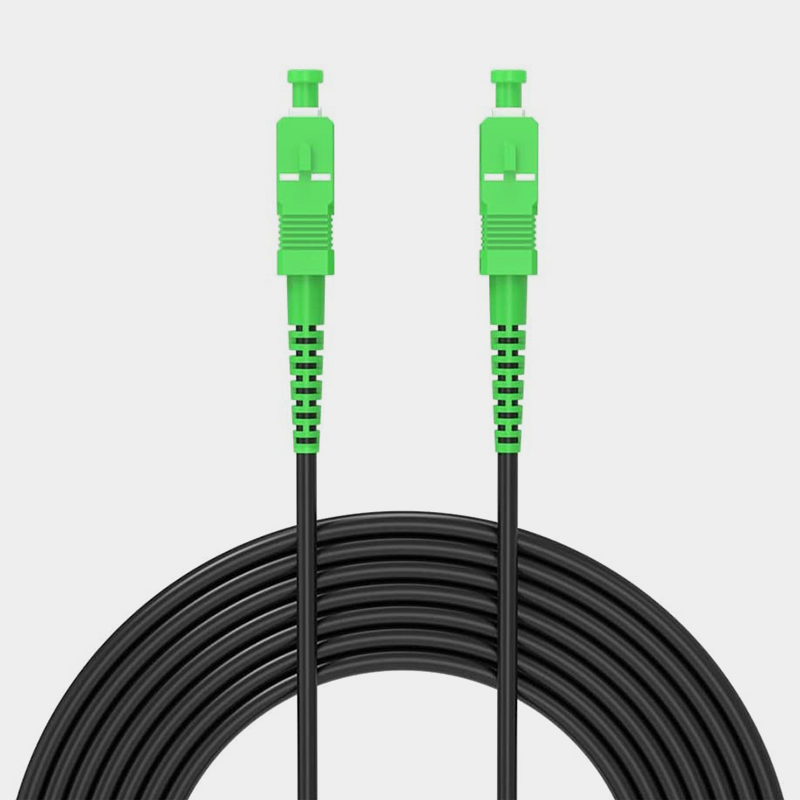

PAMIX Novel Groove Pre-terminated Drop Cable

Applications

• This PAMIX FTTH outdoor drop cable features connectors terminated on both sides, making it easy for FTTH installers to lay and pull.

• It is used to connect subscriber or multi-dwelling buildings to the distribution cable, bringing optical signals from outside to inside the building.

• The cable used in this drop patch cord typically features an FTTH Novel Groove Design.

• An FRP or steel member is included as part of the cable to provide higher tensile strength.

• It is usually shipped as a two-side terminated cable.

• PAMIX factory-terminated drop fiber cords undergo inspection and pass quality control tests before shipping.

• SC and LC connectors are available in PC, UPC, or APC types.

Features

• A cost-effective solution to bring fiber signals from outdoor to indoor environments.

• UV-resistant and waterproof cable, making it perfectly suitable for outdoor applications.

• Can be produced in a range of lengths starting from 0.5 meters and more.

• Provides low insertion loss.

• Includes two parallel FRP members.

Technical & Mechanical Specifications

• Cable Sheath: FR/LSZH according to IEC 60332-1-2 cable sheath across all models.

• Outer Sheath Color: Black RAL 7035 for standard models, and Black RAL 9005 for Aerial models.

• Cable Size: 2.0mm ± 0.1 x 3.0mm ± 0.1 for standard models, and 2.0mm ± 0.1 x 5.20mm ± 0.1 for Aerial models.

• Tensile Strength: Ranges from 200/100N (standard models) up to 600/300N for Aerial Steel models.

• Crush Strength: Varies by model, ranging from 100/80N / 100mm up to 2000/1000N / 100mm.

Ordering Information & Options

• Available configurations include Indoor Drop Cable, Outdoor Drop Cable, and Outdoor Aerial Drop Cable.

• Available with either FRP or Steel strength members.

• Standard core lengths include 5.0m, 10.0m, 15.0m, 20.0m, 30.0m, 40.0m, 50.0m, 75.0m, and 100.0m.

• Standard connector options include SC/UPC and SC/APC.

• Other lengths, connectors, and multimode fiber can be customized based on customer request.

• One-side terminated fiber patch cords can also be customized based on customer request.
