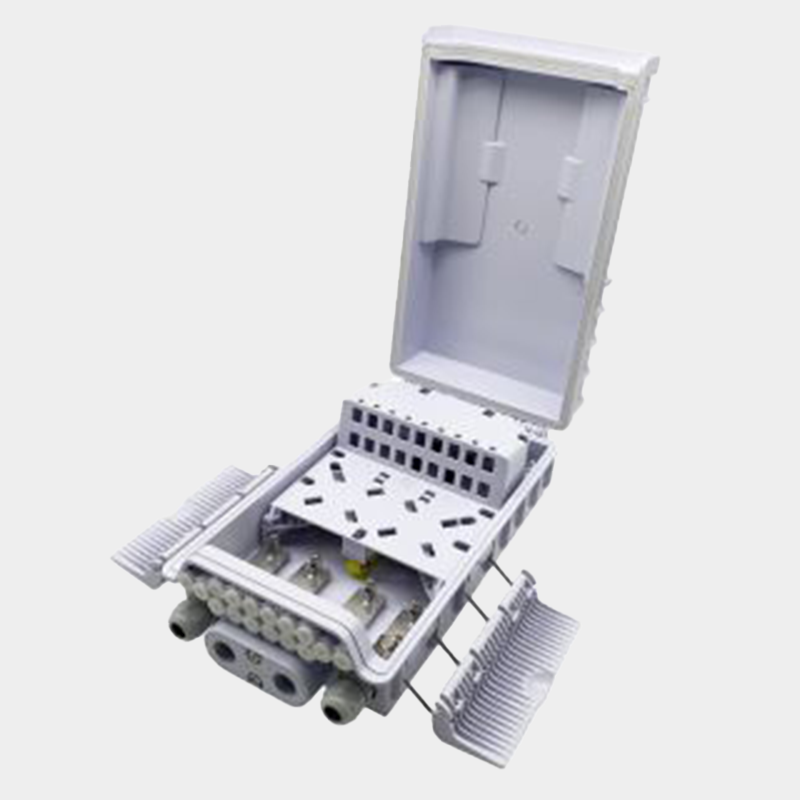

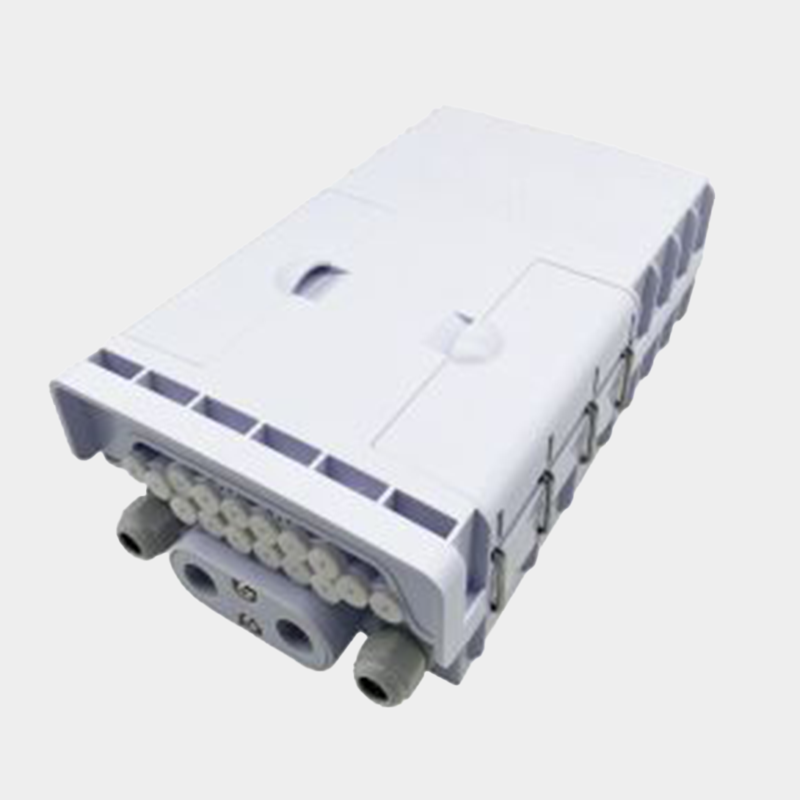

PAMIX fiber optic distribution boxes are widely used in FTTH applications as a termination point for drop cables. They are suitable for fiber splicing, splitting, and distribution, maximizing your fiber core capacity in a very limited space. They generally can be installed on walls or poles and are suitable for tube-type PLC splitters.
General Features & Applications
-
Applications: FTTH access networks, telecommunication networks, CATV networks, and data communication networks.
-
Design & Protection: Outdoor usage, water, dust & UV-proof IP65 design.
-
Structure: Tube PLC type with easy internal cable management.
-
Material & Color: ABS+UV material available in Black, White, or Grey color.
-
Mounting: Wall or Pole mount.
Technical Specifications
-
Size: $182.5 \times 306.4 \times 115.5\text{ mm}$
-
Material: ABS+UV
-
Color: Black, White, Grey
-
Splice Capacity: 18 Cores
-
Adapter Type: SC/LCD
-
Adaptor Capacity: 18
-
Branch Cable Input: 2 branch cable inputs of $\varnothing 6.0$ to $\varnothing 11.0\text{ mm}$
-
Uncut Cable Input: Uncut cable port $\varnothing 6.0$ to $\varnothing 10.0\text{ mm}$
-
Out coming Cable: 16 cable outputs $2 \times 3\text{ mm}$
-
Installation Method: Wall, Pole Mounted
-
Operating Temperature: $-40^\circ\text{C}$ to $85^\circ\text{C}$
Package Includes
-
Key, splice accessories, Wall & Pole mounting accessories, PLC splitter tube type based on some model.
Ordering Information
-
Article Number 1016780: Fiber distribution, 2 main cable inputs, 16 cable outputs, 1:16 PLC Tube Splitter
-
Article Number 1016781: Fiber distribution, 2 main cable inputs, 16 cable outputs, empty no PLC Splitter
-
(Note: Customized distribution boxes can be produced based on customer request).
