PAMIX FOSC-DH111-S-96F

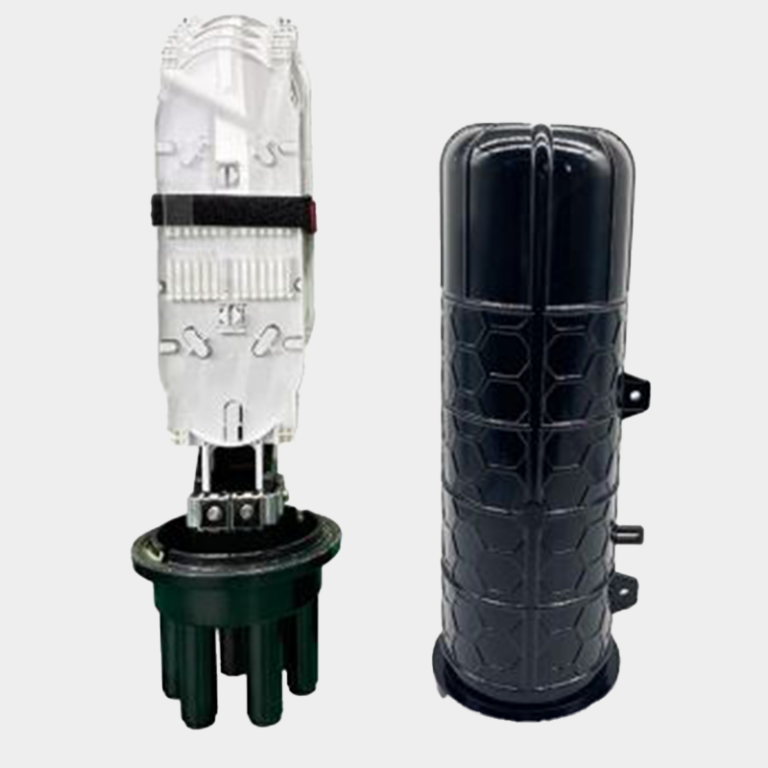

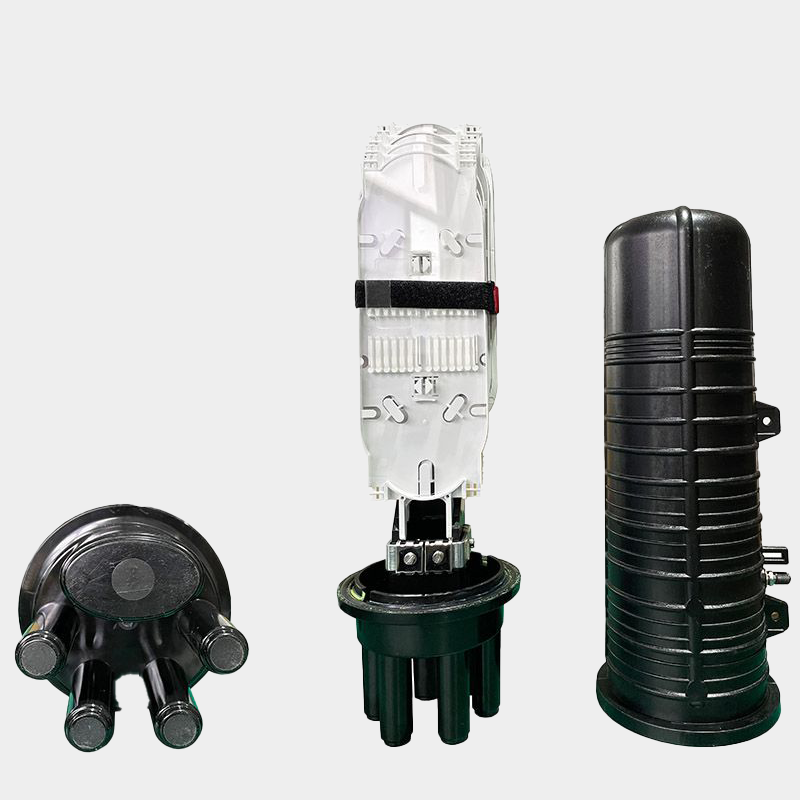

The PAMIX Fiber Optic Splice Closure Dome Type (FOSC-DH111-S-96F) is a multifunctional splice closure widely used in FTTH outdoor cable distribution applications as connection and branching. It is suitable for pole mounting, wall mounting, aerial mounting, underground manhole, and pipelined networks, and can be used both outdoor and indoor.

General Features & Applications

• Applications: Ideal for FTTH access networks, telecommunication networks, CATV networks, and data communication networks.

• Design & Durability: Features a long-lasting body built with PP+GF plastic material that is portable, impact-resistant, corrosion-resistant, and lighting-resistant.

• Capacity & Organization: Designed internally with enough space for fiber splice and storage, featuring splice cassettes and easy internal cable management.

• Sealing & Protection: Provides IP68 wet, water, and dustproof protection with cable ports utilizing heat shrink sealing.

Technical Specifications

• Dimensions: 195 (Diameter) $\times$ 402 (Height) mm.

• Material & Color: PP+GF material in black color.

• Splice Capacity & Trays: Supports up to 96 cores total, utilizing 4 maximum trays each with 24 splice capacity.

• In/Out Cable Ports: 1 oval port ($10\text{–}25\text{ mm}$) and 4 round ports (up to $18\text{ mm}$).

• Sealing Method: Heat shrink.

Standard Package Accessories

• Heat shrinkable protective sleeve, nylon tie, heat shrinkable fixing sleeve (single), heat shrinkable fixing sleeve (mass), labeling paper, special wrench, buffer tube, and a pole mounting kit.

Ordering Information

• Article Number 1016821: 96 core fiber splice closure, heat shrink sealing

• Article Number 1016808: Aerial mounting kit

• Article Number 1016809: Wall mounting kit

• Article Number 1016810: Pole Mount Kit

• (Note: Customized FOSC can be produced based on customer requests).
