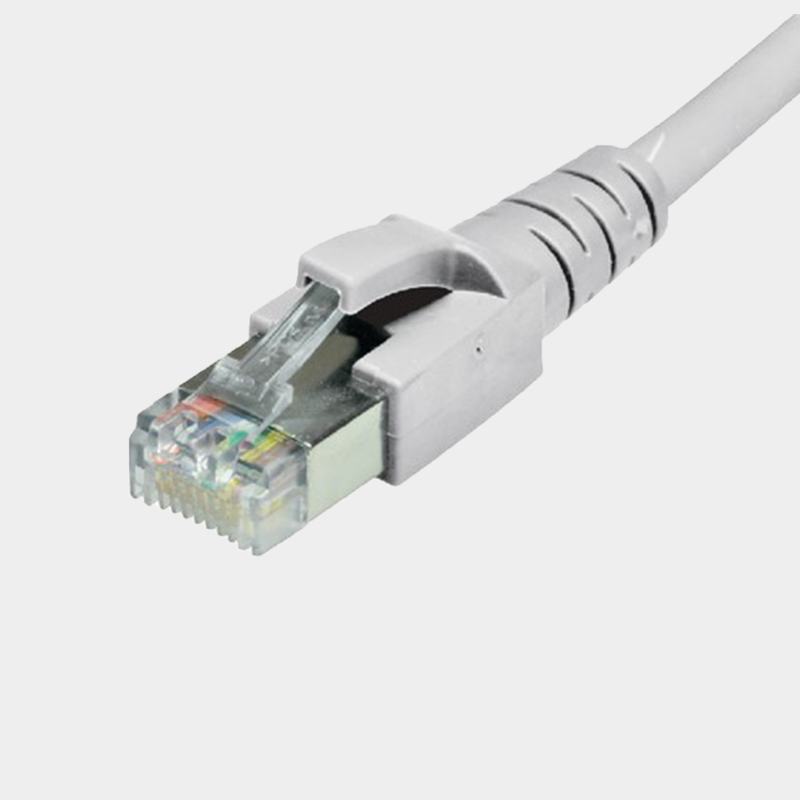

The PAMIX Elite Patch Cord 10G CAT6A S/FTP 4P, LSZH is designed for superior network reliability, exhibiting excellent NEXT and Alien Crosstalk performance. This patch cord supports 10 Gigabit transmission and is completely backward compatible with Cat 6, Cat 5/5e, and Cat 3 networks. Manufactured for maximum protection against electromagnetic interference (EMI), it reliably supports 10 GB/s transmission in accordance with the IEEE802.3an standard.
General Construction & Design Designed for indoor applications, this patch cable is built with overall tinned copper braid shielding and individually foiled twisted pairs using Bi-Laminate (Alum +Poly). It is terminated in 8-position 8-conductor (8P8C) modular connectors, utilizing a high-quality RJ45 screened male connector lead to exceed standard requirements up to 500MHz. The cable is housed in an FRNC/LSZH external sheath and includes an LSZH boot.
Technical Specifications
-
Conductors: Cat 6A Cable with AWG26 stranded copper for flexibility.
-
Insulation: PE – Polyethylene (Foam) Insulation.
-
Contacts: Phosphor Bronze with 50u inch Gold over Nickel Plating front connection blades.
-
Wiring Scheme: T568A/B-T568A/B wiring scheme.
-
Durability: Tested for 750 times mated connection.
-
Compatibility: Suitable for RJ45 Female Jacks & Modules with 10G performance and backward compatibility.
Electrical & Environmental Characteristics
-
Dielectric Strength: 2.5 kV DC.
-
Current Rating: 1A.
-
Insulation Resistance: 5000 M Ohm*km.
-
Contact Resistance: 20 m Ohm maximum.
-
Voltage Rating: 72V.
-
Installation Temperature: 0°C to +50°C.
-
Operating Temperature: -20°C to +60°C.
Industry Standards
-
Category/Class: Cat.6A, Class EA for 10GBase-T.
-
Transmission Requirements: IEC 61935-2:2010 (Ed.3.0).
-
Plug Standards: IEC 60512-99-001:2012 (Ed.1.0).
-
Cabling Standards: ISO/IEC 11801-1:2017(Ed.1.0) / ISO/IEC 11801-2:2017(Ed.1.0), EN 50173-1:2018/ EN 50173-2:2018 /TIA-568.2-D:2018.
-
Flame Propagation: IEC 60332-1/-2, EN 60332-1-2, VDE 0482-332-1-2.
-
Smoke Density: IEC 61034-1/-2, EN 61034-1/-2, VDE 0482-1034-1/-2 (applies to FRNC/LSOH).
-
Zero Halogen/Corrosive Gases: IEC 60754-1/-2, EN 60754-1/-2, VDE 0482-754-1/-2.
-
EMC: Shielded.
Ordering Information
-
Available Lengths: 0.5 m, 1.0 m, 2.0 m, 3.0 m, 4.0 m, 5.0 m, 6.0 m, 7.0 m, 8.0 m, 9.0 m, 10.0 m, 15.0 m, and 20.0 m (Different lengths available on customer request).
-
Available Colors: Gray, Green, Yellow, Red, Blue, Black, White, Orange, and Oval.
-
(Note: Base part numbers start at 1010401 for 0.5m Gray and increment based on length and color matrix.)
