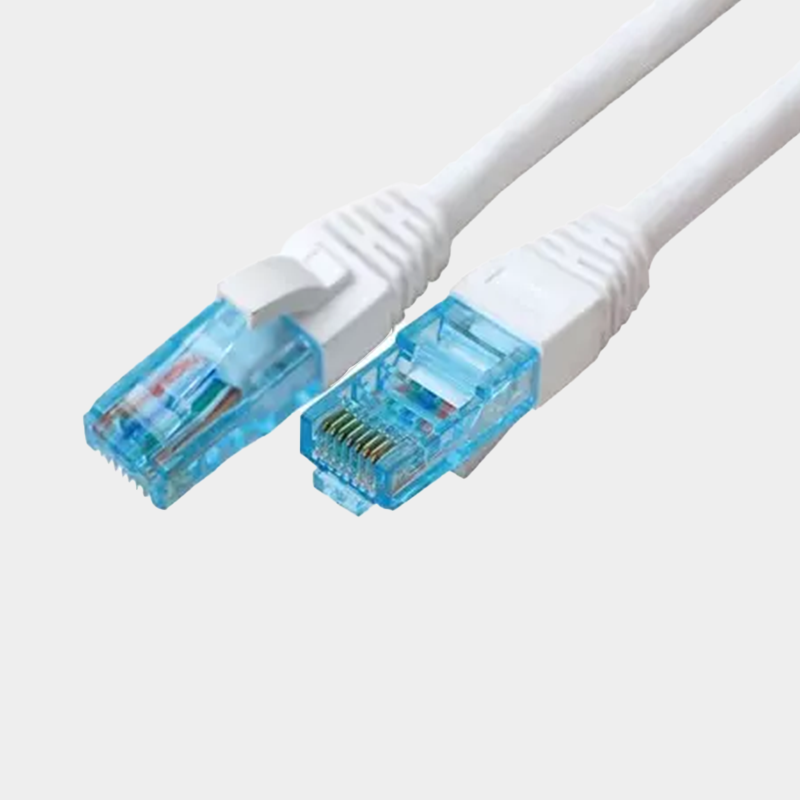

The PAMIX Cat 6A Patch Cord / Class E 10Gigabit exhibits excellent NEXT performance. Featuring high-quality RJ45 screened male connector leads, these patch cords are designed to exceed standard requirements up to 500MHz. PAMIX Cat 6A patch cords support 10 Gigabit and are backward compatible with Cat 5/5e and Cat 3 networks. Each Cat 6A / Class EA patch cable is terminated with 8-position 8-conductor (8P8C) modular connectors.
General Construction & Design
Built for indoor applications, this patch cord features an AWG24 pure copper conductor and is terminated in 8-position 8-conductor (8P8C) modular connectors using a T568A/B-T568A/B wiring scheme. It utilizes PE – Polyethylene (Foam) Insulation and is available in either an FRNC/LSZH or FRNC/PVC external sheath.
Technical Specifications
-
Conductors: Cat 6A / Class EA Cable with AWG24 pure copper conductor.
-
Termination: Terminated in 8-position 8-conductor (8P8C) modular connectors.
-
Wiring Scheme: T568A/B-T568A/B wiring scheme.
-
Insulation: PE – Polyethylene (Foam) Insulation.
-
Contacts: Phosphor Bronze with 50u inch Gold over Nickel Plating front connection blades.
-
Application: Indoor application, suitable for RJ45 Female Jacks & Modules with 10G performance and backward compatibility.
Industry Standards
-
Category/Class: Cat.6A, Class EA for 10GBase-T.
-
Flame Propagation: IEC 60332-1/-2, EN 60332-1-2.
-
Transmission Requirements: IEC 61935-2:2010 (Ed.3.0) (Cat.6A transmission requirements).
-
Plug Standards: IEC 60512-99-001:2012 (Ed.1.0) (Plug).
-
Cabling Standards: ISO/IEC 11801-1:2017(Ed.1.0) / ISO/IEC 11801-2:2017(Ed.1.0), EN 50173-1:2018 / EN 50173-2:2018 / TIA-568.2-D:2018.
Ordering Information
-
Available Lengths: 0.5 m (Part Number Prefix 1010581), 1.0 m (1010582), 2.0 m (1010583), 3.0 m (1010584), 4.0 m (1010585), 5.0 m (1010586), 6.0 m (1010587), 7.0 m (1010588), 8.0 m (1010589), 9.0 m (1010590), 10.0 m (1010591), 15.0 m (1010592), and 20.0 m (1010593) (other lengths available on customer request).
-
Sheath Options ($x$): 1 = LSZH, 2 = PVC.
-
Color Options ($y$): 0 = Grey, 1 = Green, 2 = Yellow, 3 = Red, 4 = Blue, 5 = Black, 6 = White, 7 = Orange.
(Note: Part numbers follow the format
101058X-xybased on length, sheath type, and color choice).
