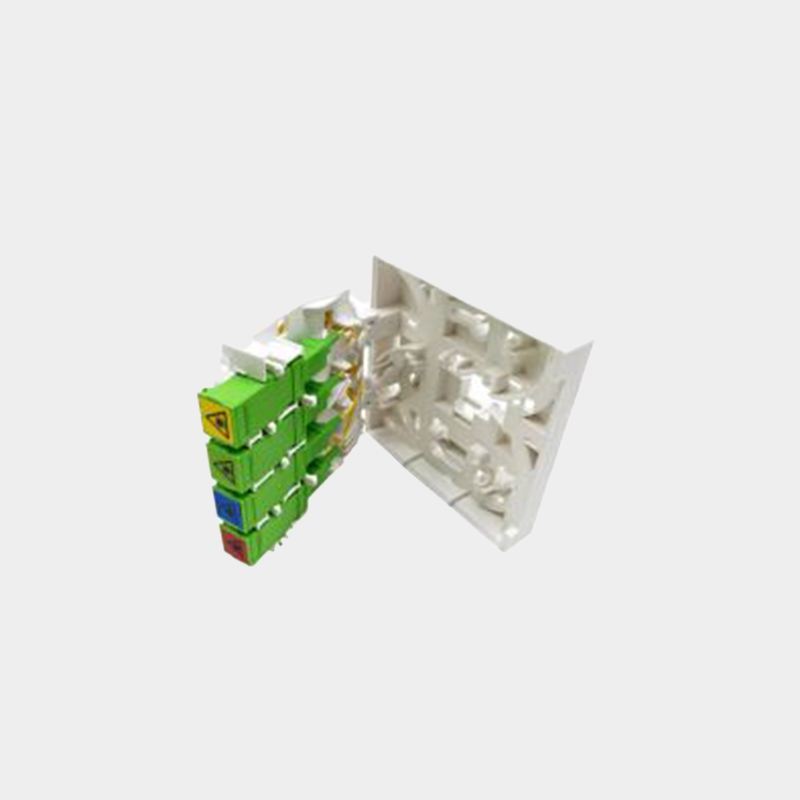

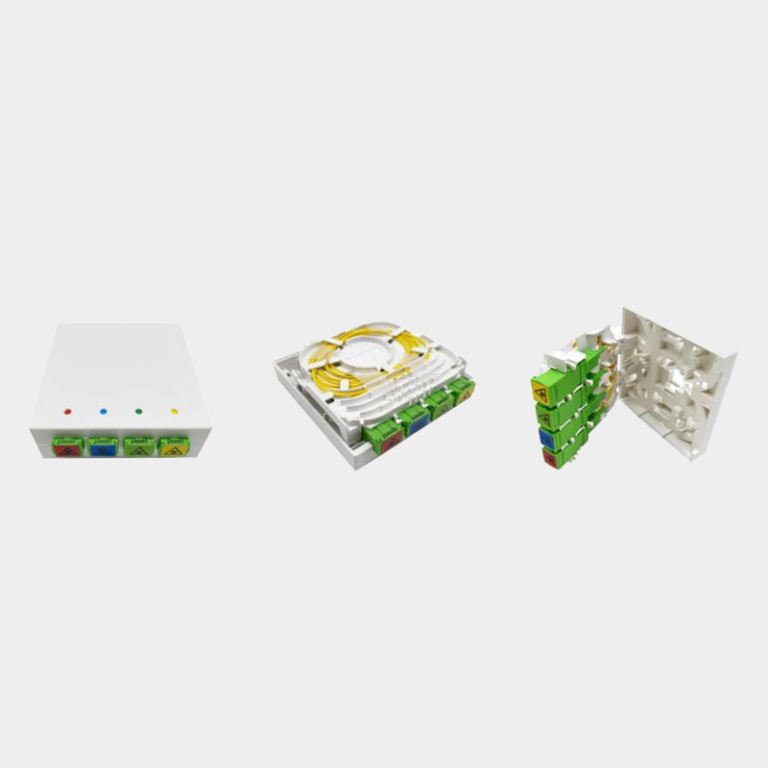

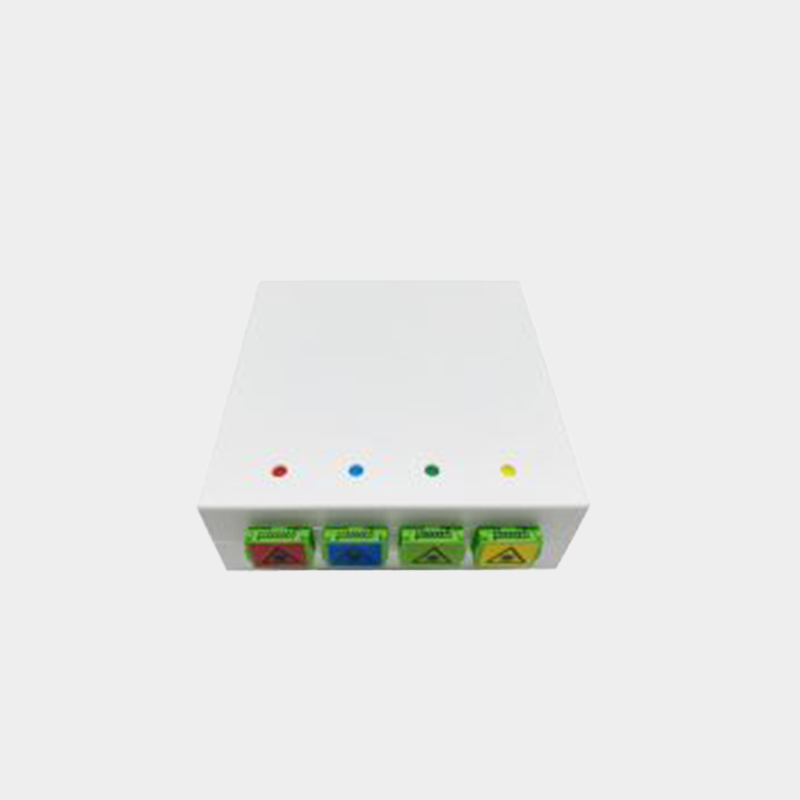

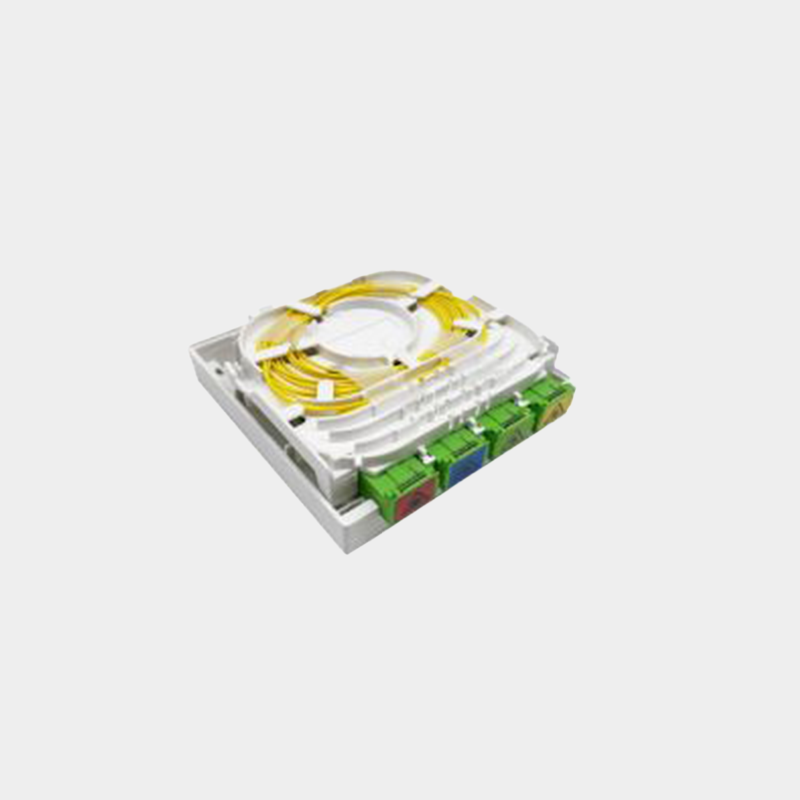

The FO4P-SW6 4 Ports Surface Wall Mount Fiber Outlet is used in FTTH applications for indoor use, functioning as a surface-mounted fiber outlet widely utilized to terminate drop cables from outdoors inside the home.
Features & Specifications
-
Material & Build: Constructed from flame-retardant ABS or APS+PC material.
-
Capacity: Accommodates 4 SC or 4 LCD adapters, supporting APC or UPC polish types.
-
Adapter Options: SC adapters can be configured with either a shutter or a standard dust cover.
-
Drop Cable Options: Optional 2 or 4 core drop cable models are available in lengths of 50 or 100 meters.
-
Color & Dimensions: White color with dimensions of 80 x 80 x 35 mm (H x W x D).
-
Compliance: RoHS compliant product.
Ordering Information
-
Article Number 1016739: Surface wall mount fiber outlet, 4 ports
-
Article Number 1016740: Surface wall mount fiber outlet, white color, 2 SC/APC pigtail & 2 SC/APC adapter
-
Article Number 1016741: Surface wall mount fiber outlet, 2 SC/APC pigtail & 2 SC/APC adapter, 50-meter drop cable
-
Article Number 1016744: Surface wall mount fiber outlet, 2 SC/APC pigtail & 2 SC/APC adapter, 100-meter drop cable
-
Article Number 1016745: Surface wall mount fiber outlet, 4 SC/APC pigtail & 4 SC/APC adapter, 50-meter drop cable
-
Article Number 1016746: Surface wall mount fiber outlet, 4 SC/APC pigtail & 4 SC/APC adapter, 100-meter drop cable
-
Article Number 1016051: SC/APC Pigtail
-
Article Number 1016116: SC/APC Adapter
-
Article Number 1016121: SC/APC Adapter with shutter
-
(Note: Other colors and customized models are available on customer request).
