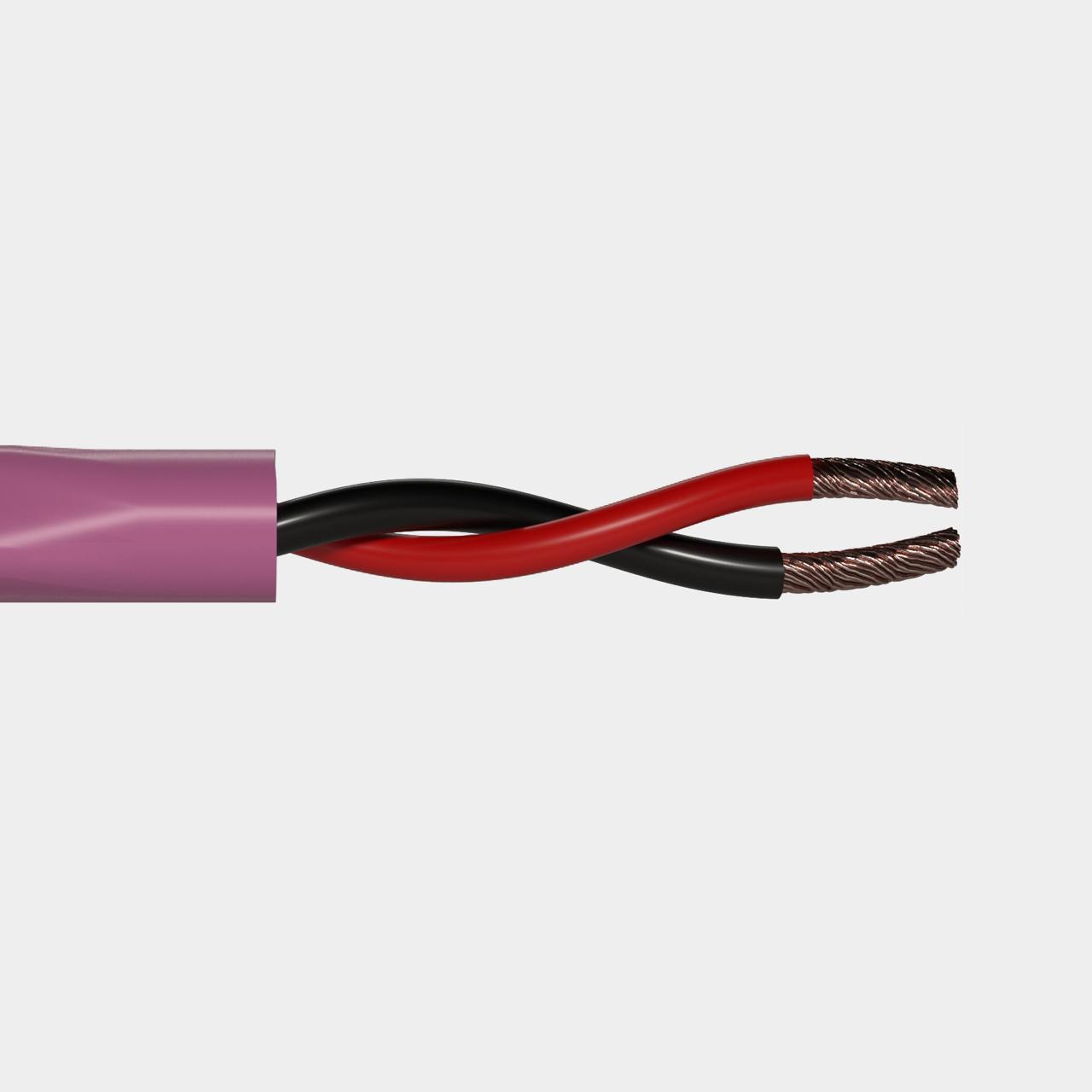

The PAMIX CSI100-162U-PV Circular Speaker Cable is a high-quality audio speaker cable designed specifically for indoor commercial and professional applications. It is also highly effective for home cinema setups, connecting speakers, and amplifiers.
General Construction
-
Conductor: Oxygen free copper.
-
Conductors Count: 2 stranded conductors.
-
Stranding: 65 x 0.16mm (16AWG).
-
Insulation & Sheath: Polyvinyl Chloride (PVC) for both the insulation material and the outer sheath.
-
Cable Color: Pink.
-
Core Identification: Red, Black.
Electrical Characteristics
-
Nominal Conductor Resistance: < 13.7 Ω/km.
-
Insulation Resistance: >200 MΩ.m.
-
Voltage Rating: 450/750V.
-
Test Voltage: 2.5kV for 5 minutes.
Mechanical Characteristics
-
Overall Diameter: 5.6 mm.
-
Minimum Bending Radius: 15 X OD.
-
Temperature Rating: -20°C to +70°C.
Standards & Compliance
-
Flame Retardant: BS EN 60332-1-2.
-
RoHS: Compliant.
-
CE Compliance: LVD (2014/35/EU) CPR (305/2011).
-
CPR Classification: Eca (EN50575:2014+A1:2016).
Ordering Information
-
Article Number 2501101: PAMIX CSI-100-162U-PV Speaker Cable, 2 stranded conductors, 16AWG, PVC.
