The PAMIX CSO200-162S-PE Circular Speaker Cable is a high-quality audio speaker cable suitable for outdoor commercial and professional applications. It is also highly effective for home cinema setups, connecting speakers, and amplifiers.

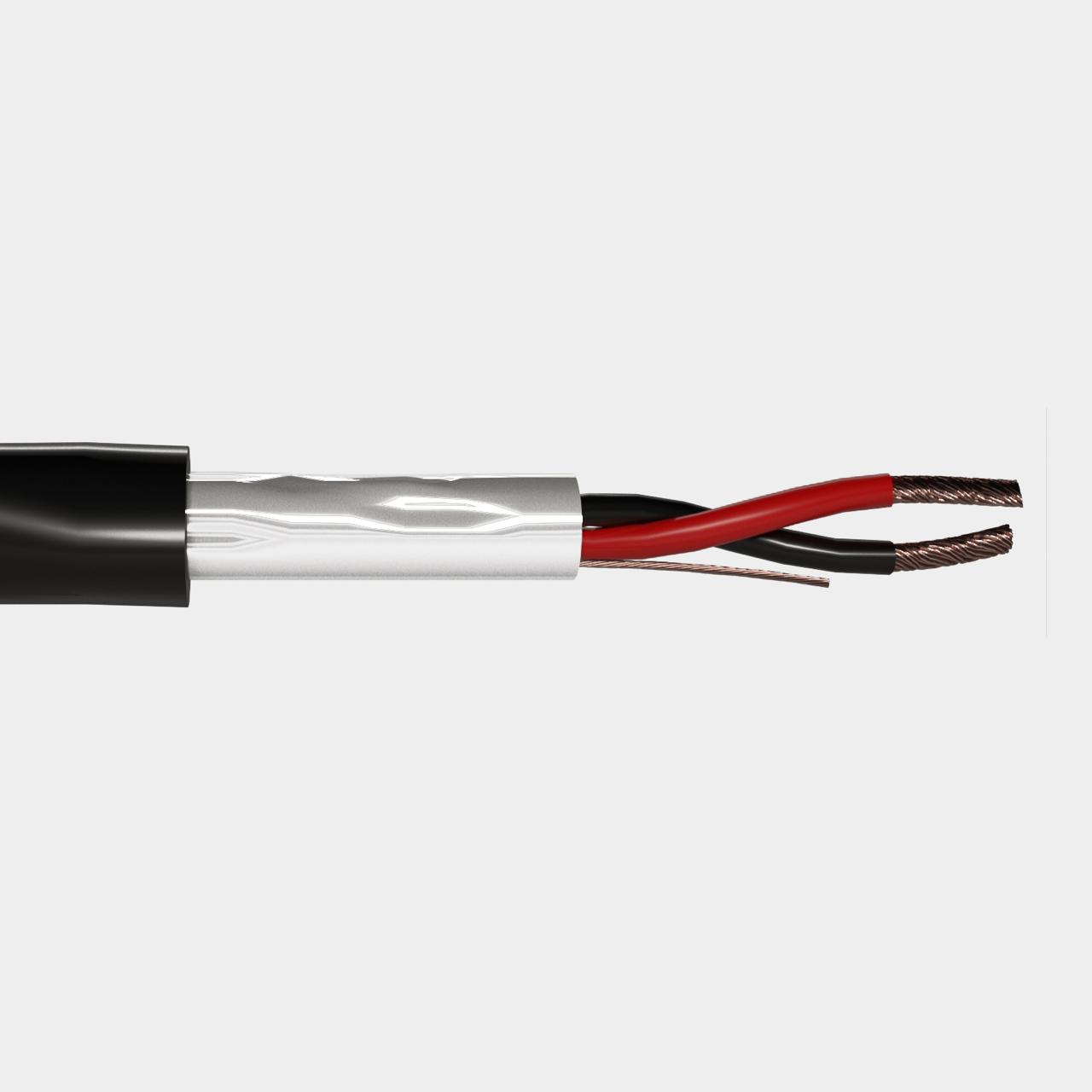

General Construction
-
Conductor: Oxygen-free copper, 2 stranded cores consisting of 65 x 0.16mm (AWG16) strands.
-
Drain Wire: Oxygen-free copper, 7 x 0.16mm.
-
Overall Screen: Aluminum foil providing 100% coverage to prevent interference.
-
Insulation & Sheath: Polyvinyl Chloride (PVC) insulation protected by a rugged Black Polyethylene (PE) outer sheath.
-
Core Identification: Red and Black.
Electrical Characteristics
-
Nominal Conductor Resistance: < 13.7 Ω/km.
-
Insulation Resistance: >200 MΩ.m.
-
Voltage Rating: 300/500V.
-
Test Voltage: 2.0kV for 5 minutes.
Mechanical Characteristics
-
Overall Diameter: 6.0 ± 0.20mm.
-
Minimum Bending Radius: 10 X OD.
-
Temperature Rating: -40°C to +70°C.
Standards & Compliance
-
Flame Retardant: BS EN 60332-1-2.
-
RoHS: Compliant.
Ordering Information
-
Article Number 2501201: PAMIX CSO-200-162S-PE Speaker Cable, Shielded, 2 stranded conductors, 16AWG, PE Outdoor.
