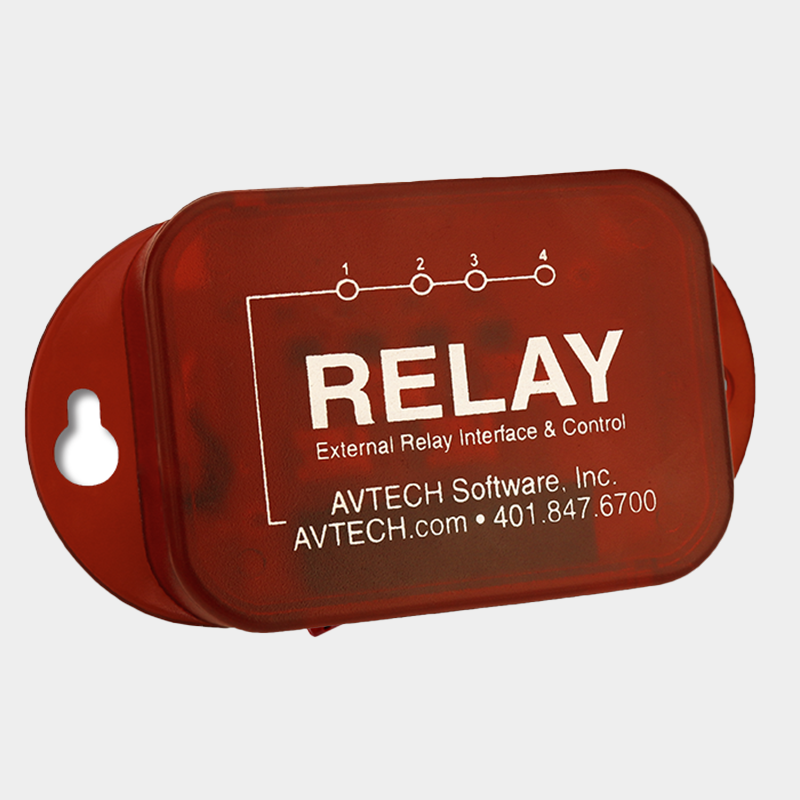

Relay Switch Sensor w/Light Tower Adapter

Automate your facility’s response to environmental threats with the AVTECH Relay Switch Sensor. Designed to automatically toggle up to four low-voltage devices on or off when an alarm condition is triggered or resolved, this sensor transforms your Room Alert monitor from a passive tracking tool into an active defense system.

Automated Control & Integration The four outputs on the Relay Switch Sensor feature visible status lights and can be individually controlled directly from the Room Alert Web Interface, or programmed to respond automatically to environmental thresholds. Wire it to building alarm panels to trigger facility-wide alerts, or connect it directly to backup HVAC units, exhaust fans, water pumps, or generators to instantly mitigate threats without human intervention.

Plug & Play Deployment This instant “Plug & Play” switch connects directly into the Light Tower Connection Port on compatible Room Alert monitors using the included Light Tower & Relay Adapter (LTA)—which conveniently includes its own additional built-in relay switch. If you need to place the switch further away from the monitor, the standard 25′ (7.62 m) cable can be easily extended up to approximately 900′ (274.32 m) using standard speaker wire or any reliable low-voltage 2-wire cable.

Technical Specifications: Relay Switch Sensor

• Relay Outputs: 4 Low Voltage Devices

• Maximum Relay Load (per port): 0.3A at 125VAC, 1A at 24VDC

• Real-Time Recognition: Low Voltage Devices Being Turned On/Off, Alarm Panel Interface

• Sensor Cable Type: 2 Wire Sensor Cable

• Included Cable Length: 25′ (7.62 m)

• Maximum Cable Length: Approximately 900′ (274.32 m)

• Compatibility: Room Alert 32S, 12S, 3S, 32E/W, 12E & 3E

Technical Specifications: Included Light Tower Adapter w/Relay Switch (LTA)

• Relay Outputs: 1 Low Voltage Device

• Maximum Relay Load: 0.3A at 125VAC, 1A at 24VDC

• Sensor Cable Type: 2 Wire Sensor Cable

• Maximum Sensor Cable Length: Approximately 100′ (30.48 m)

• Compatibility Requirement: Required for connection of relays to Room Alert 32S, 12S, 3S, 32E/W, 12E and 3E models.
