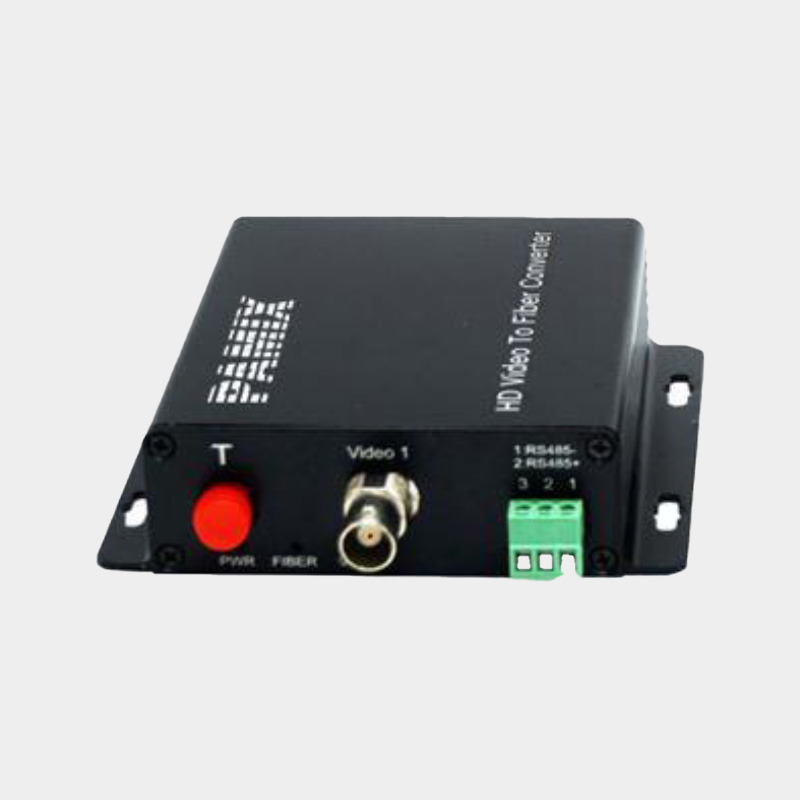

MCB-7110 HD Video to Fiber Converter

30,00 лв.

+ Free Shipping

The PAMIX MCB-7110 HD Video to Fiber Converter delivers seamless, uncompressed transmission of HD composite video over long distances using high-speed digital optical technology. Designed for industrial stability, this plug-and-play device supports up to 1080p video resolutions and RS485 return data, ensuring pristine video quality across your Single Mode fiber networks.

Key Highlights:

  • High-Definition Support: Automatically identifies and supports 720p (25/30/50/60) and 1080p (25/30) video formats.

  • Uncompressed Quality: Utilizes uncompressed coding technology for zero-latency, lossless video transmission.

  • Long-Distance Reach: Transmits crisp HD video and control data up to 20km over a single-mode optical fiber.

  • Industrial Reliability: Features a rugged design with a wide operating temperature range (-20°C to 70°C) and hot plug-and-play simplicity.

Category:
Guaranteed Safe Checkout

The PAMIX MCB-7110 HD Video to Fiber Converters utilize advanced uncompressed HD composite video to high-speed digital optical transmission technology. By seamlessly converting PAMIX HD video composite signals to optical signals, these devices enable reliable, long-distance transmission over optical fiber, making them ideal for expansive video surveillance and broadcasting networks.

Advanced Video Transmission & Flexibility Designed for demanding industrial environments, these converters feature a wide operating temperature range and automatic identification for input video formats. They support both 720p and 1080p HD video and offer simple plug-and-play installation for immediate deployment. The system supports 1 HD video channel transmission along with controlling data on coaxial cable using advanced, uncompressed coding technology.

Technical Specifications

  • Video Interface: BNC (Impedance 75ῼ)

  • Video Bandwidth: 30MHz (720P) / 60MHz (1080P)

  • Input / Output Level: >500m Vp-p / 1 Vp-p

  • Data Interface: RS485 (Standard Industrial)

  • Data Baud Rate & Error Rate: 1200 ~ 9600bit/s / <10-9

  • Optical Interface: FC (default); SC & ST optional

  • Fiber Compatibility: Single Mode, single fiber

  • Optical Wavelength & Distance: 1330nm / 1550nm, supporting a standard 20km range (transmission technology capable of up to 80km)

  • Power Input: 5V DC

  • LED Indicators: LOS, Power & Video

  • Environmental: Operating Temperature -20°C to 70°C / Humidity 0% to 95% non-condensing

  • Device Dimensions & Weight: 10.4mm (W) x 10.4mm (D) x 2.5mm (H), 0.25kg

  • Packing Dimensions & Weight: 25.0mm (W) x 14.0mm (D) x 7.5mm (H), 0.75kg

Ordering Information

  • Article Number 5101035: PAMIX MCB-7110 HD video to Single Mode Fiber Converter Pair, 720P, 1 channel HD video, FC optical interface, 20KM

  • Article Number 5101036: PAMIX MCB-7110 HD video to Single Mode Fiber Converter Pair, 720P, 1 Channel HD video, 1 Channel Return Data, FC optical interface, 20KM

  • Article Number 5101037: PAMIX MCB-7110 HD video to Single Mode Fiber Converter Pair, 1080P, 1 channel HD video, FC optical interface, 20KM

  • Article Number 5101038: PAMIX MCB-7110 HD video to Single Mode Fiber Converter Pair, 1080P, 1 Channel HD video, 1 Channel Return Data, FC optical interface, 20KM
