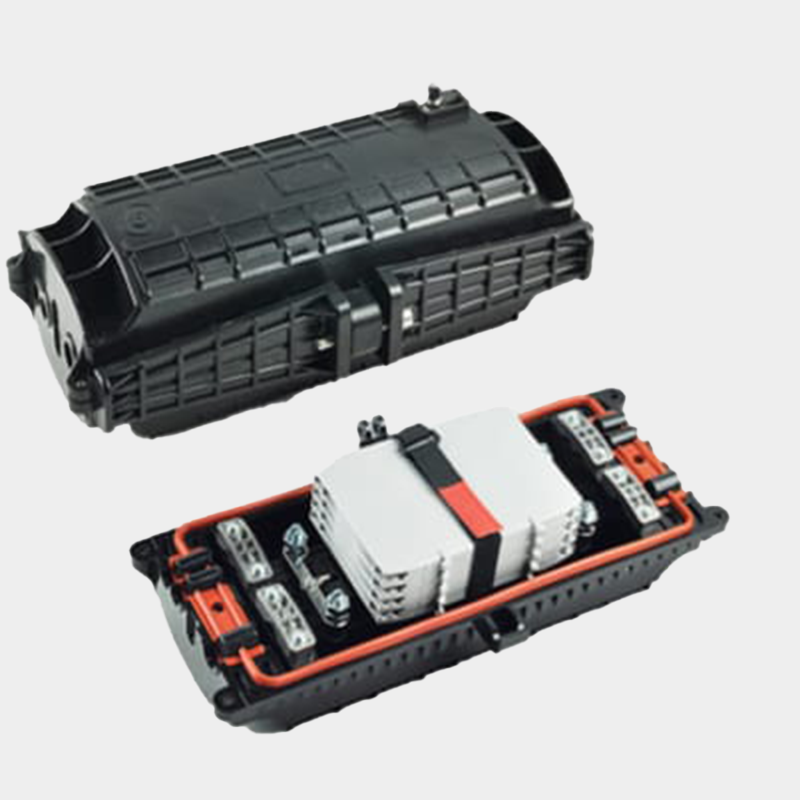

The PAMIX Fiber Optic Splice Closure Inline Type (FOSC-ILM10-S-96F) is a multifunctional splice closure widely used in FTTH outdoor cable distribution applications. It is suitable for underground manholes, wall mounting, pole mounting, aerial mounting, and pipelined networks.
General Features & Applications
-
Applications: Ideal for FTTH access networks, telecommunication networks, CATV networks, and data communication networks.
-
Design & Durability: Long-lasting body built with PC plastic material that is impact-resistant, corrosion-resistant, and lighting-resistant.
-
Capacity & Organization: Provides enough space for fiber splicing and storage, featuring splice cassettes and easy internal cable management.
-
Sealing & Protection: Offers IP68 wet, water, and dustproof protection with 6 cable entries utilizing mechanical sealing with thermoplastic rubber (three entries on each side).
Technical Specifications
-
Dimensions: 390 (Length) $\times$ 210 (Width) $\times$ 120 (Height) mm.
-
Weight: 2.1 kg.
-
Material & Color: PC Plastic material in black color.
-
Splice Capacity & Trays: Supports up to 96 cores total, utilizing 4 maximum trays each with 12/24 splice capacity.
-
Ports & Cable Diameter: 3 In, 3 Out cable ports supporting fiber cable diameters from $\varnothing 7\text{mm}$ to $\varnothing 16.5\text{mm}$.
-
Sealing Method: Mechanical sealing with high-quality rubber for repeatable opening.
-
Electrical Characteristics: Insulation resistance $\ge 2 \times 10^4\text{ M}\Omega$ between the metal component and the ground; withstands $15\text{kV}$ (DC)/1min without breakdown or arcs between the metal component and the ground.
Standard Package Accessories
-
Heat shrinkable protective sleeve, nylon tie, insulation tape, seal tape, hanging hook for aerial installation, earth wire, desiccant bag, labeling paper, and a special wrench.
Ordering Information
-
Article Number 1016820: 96 fibers closure, Inline type
-
(Note: Customized FOSC can be produced based on customer requests).
